FOCMKEAS FFC FPC Extension Board, 0.5mm Pitch, 10 Pin, Single Side
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

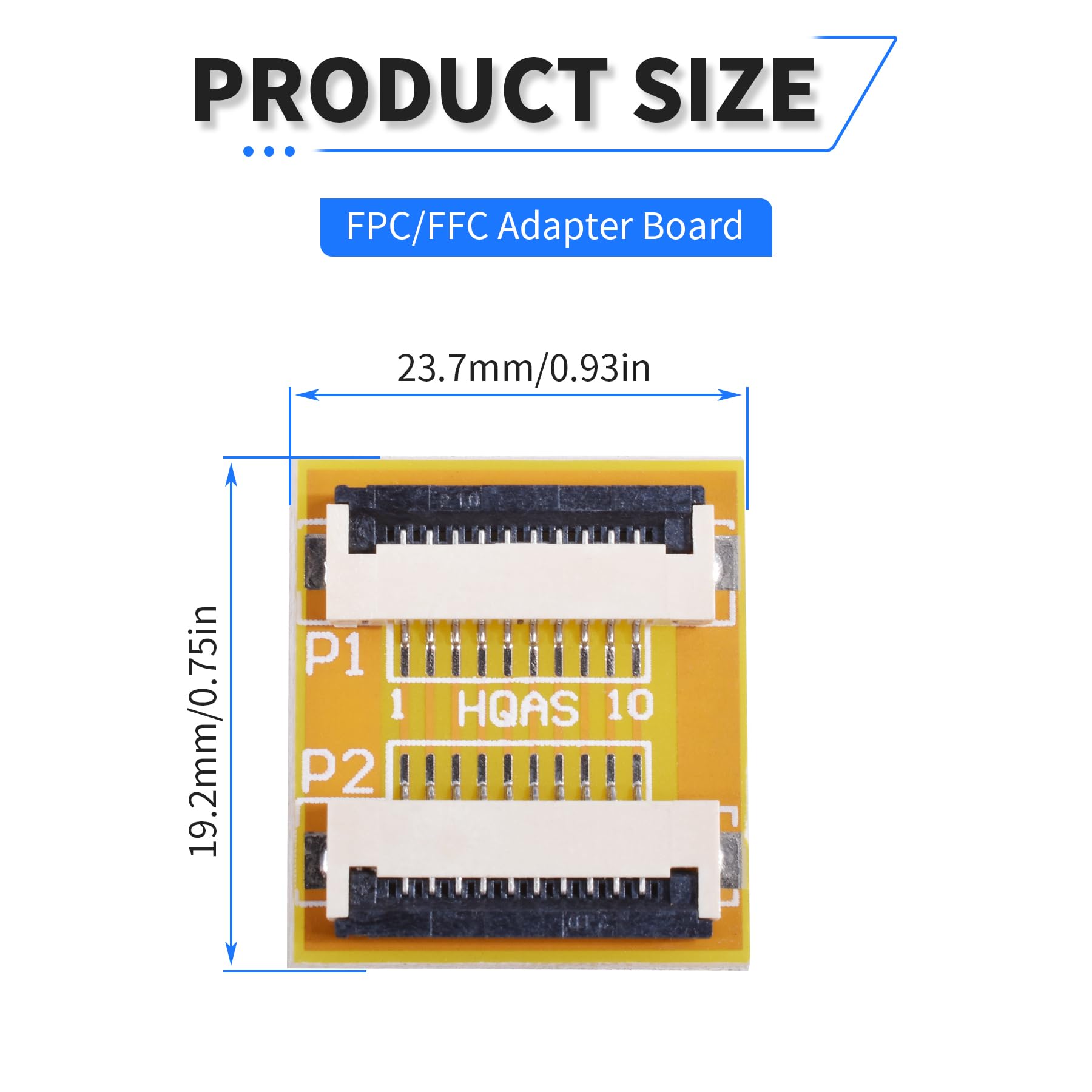

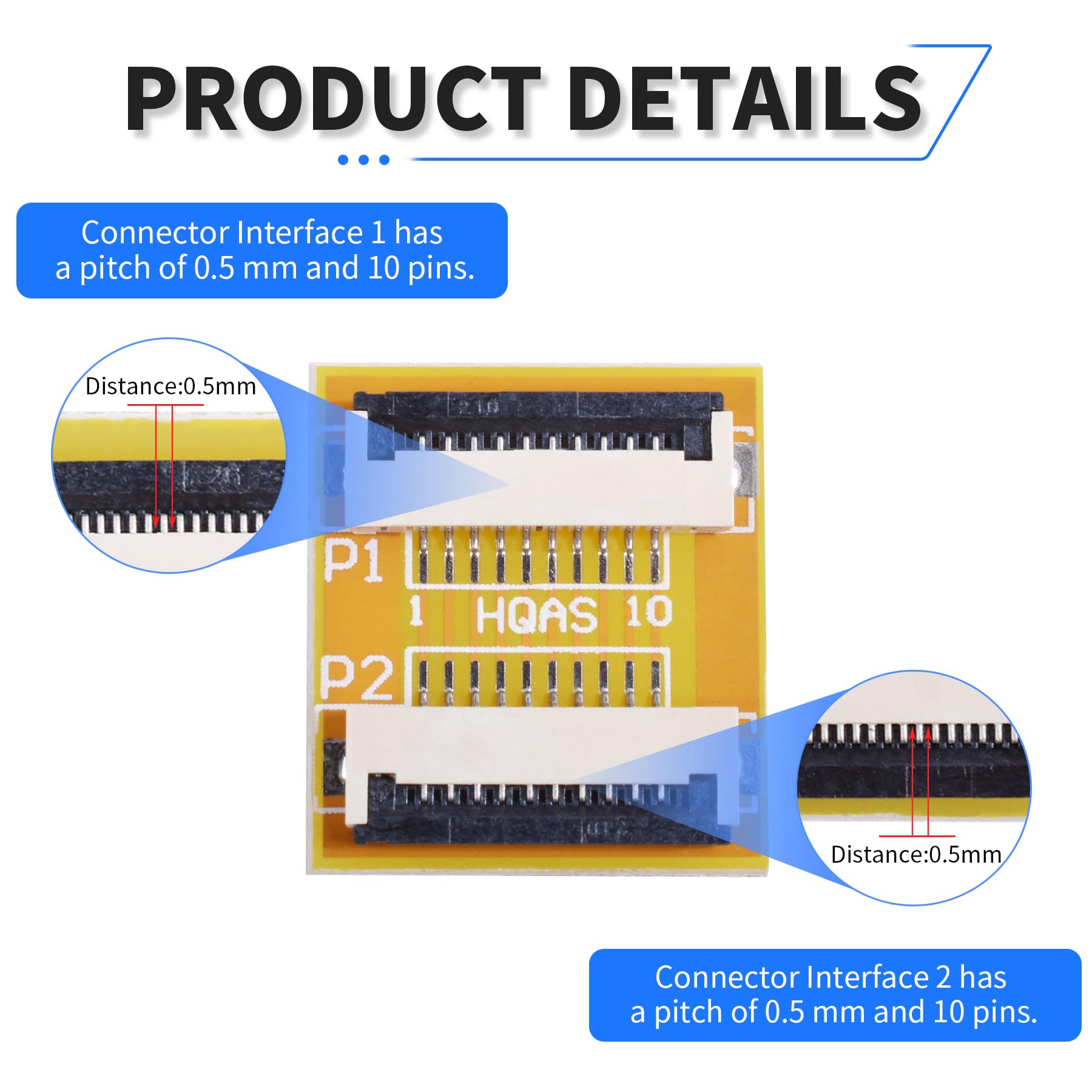

•【Size】 Product name ：FFC FPC PCB Extension Board , Board Type : Single Side ,Pin Count :10 Pins , FPC Connector Pitch :0.5mm to 0.5mm
•【Material】The main material of FPC/FFC Adapter Board substrate is made of PI, which has excellent high temperature resistance, flexibility and insulation properties. The conductive material is copper foil, which has excellent electrical and thermal conductivity.
•【Applications】FPC Connector Extend Adapter is widely used in high-density electronic devices such as laptops, LCD screens, digital camcorders, digital cameras

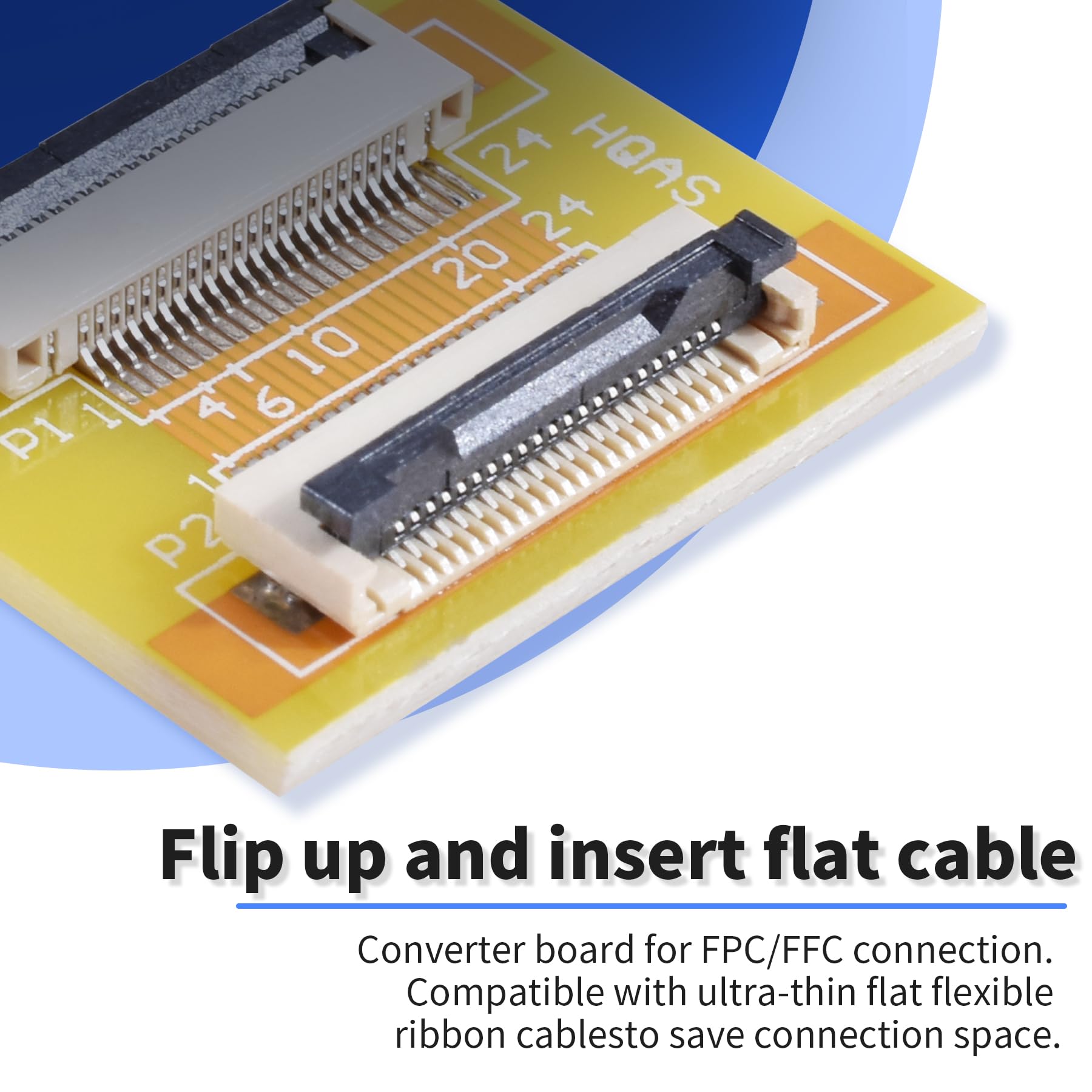

•【Function】FFC FPC PCB Extension Board for PCB connection expansion board, can be combined with flexible ribbon cable, can save the connection space

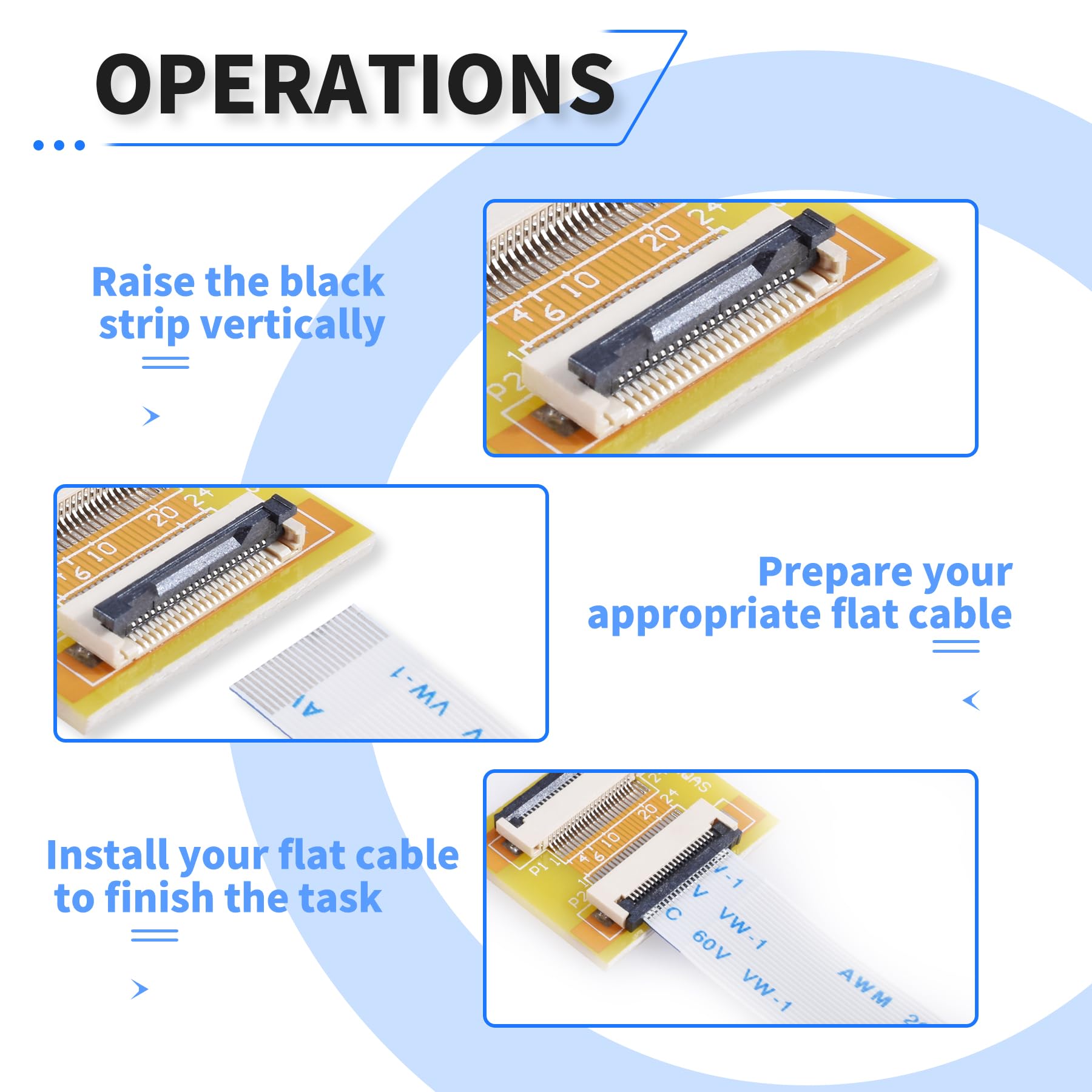

•【Installation】Installation steps: 1, flip the black interface 2, insert the corresponding flat cable (this product does not include) 3, test whether it is connected.
