ELFJMZP SATA Power Cable for HP 6000/8000 Series, 4Pin to 15Pin 3-Port Splitter, 18AWG 60cm (12V/5V Only, No 3.3V)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

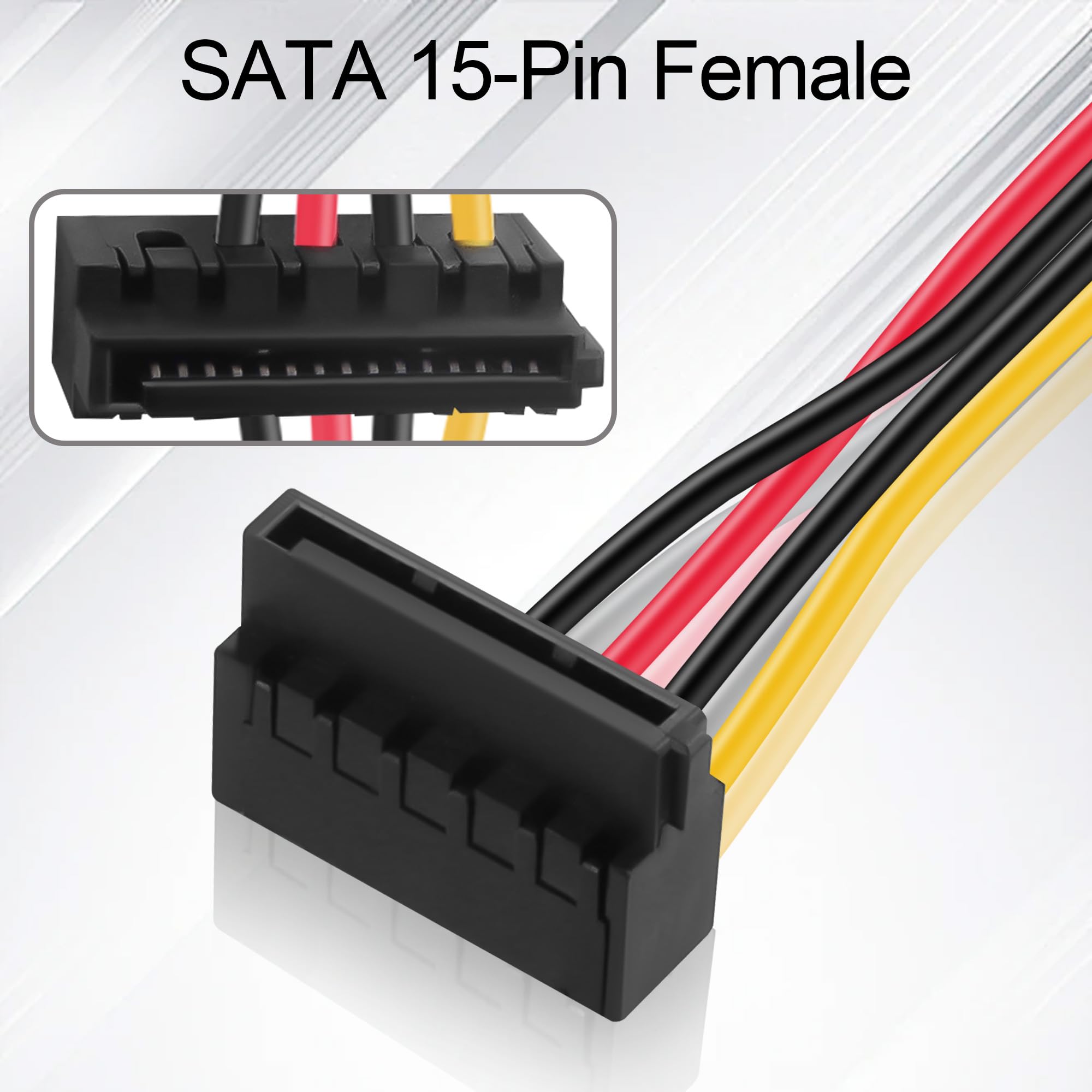

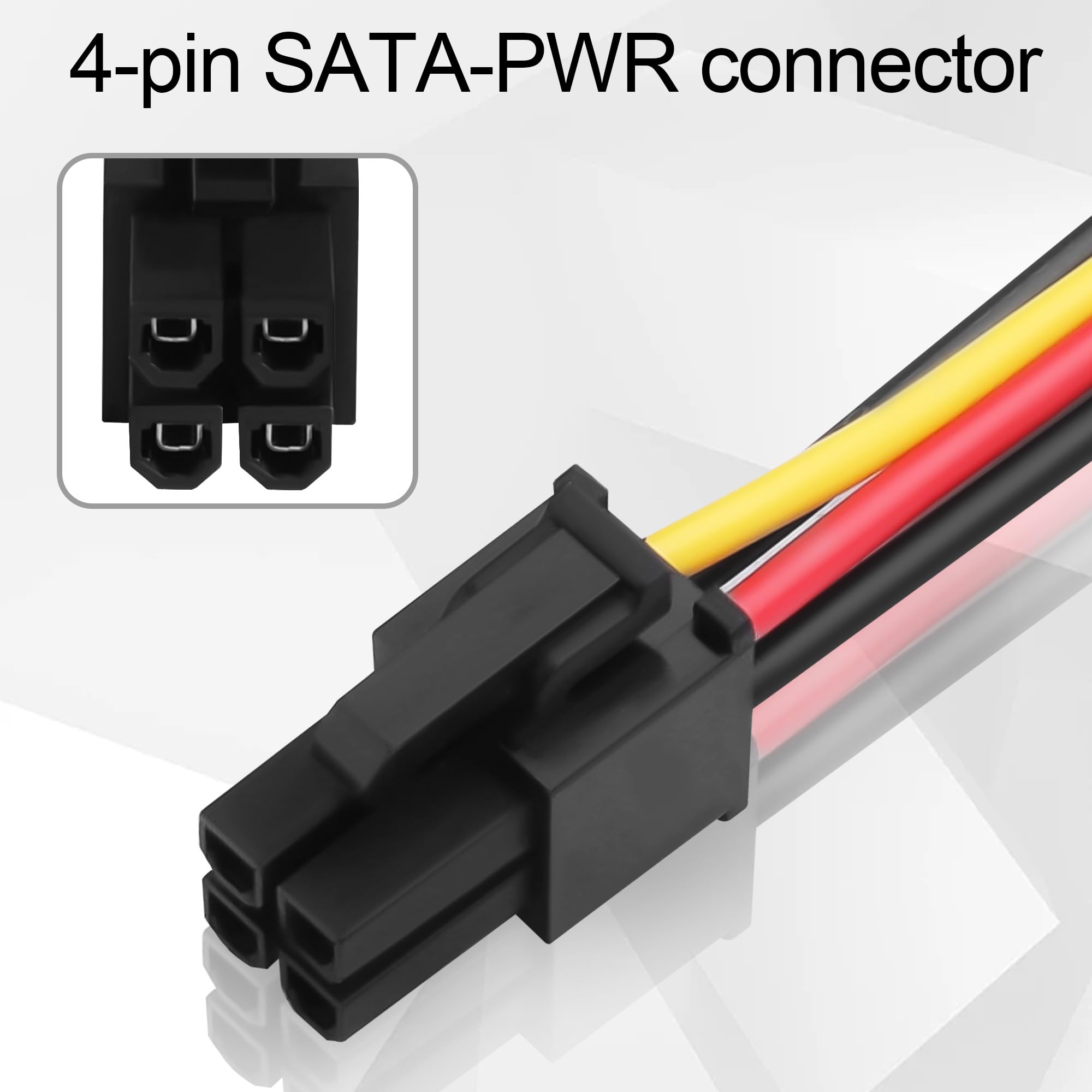

•Specially developed for 6000 and 8000 series desktops, one end can accurately dock the 4-pin SATA_PWR interface of the motherboard without polishing or switching, and the plug-in is stable and not loose; At the other end, three SATA 15-pin plugs are extended, which directly solves the pain point of insufficient power supply interface of SATA equipment of this series, and the installation upgrade is in one step.
•It adopts a clear configuration that the red line transmits 5V and the yellow line transmits 12V, and only provides dual-voltage power supply, excluding 3.3V output, which completely matches the circuit design of 6000/8000 series models and the power supply requirements of conventional SATA devices such as hard disks and optical drives, thus avoiding the equipment compatibility problems caused by voltage redundancy from the source.
•The core conductor is made of high-purity copper with 18AWG bold specification, which has strong current carrying capacity and low power transmission loss, and avoids the unstable operation of the equipment caused by wire problems; The outer PVC insulation layer is oxidation-resistant and wear-resistant, and it is not easy to age and crack after long-term use, thus prolonging the service life of the wire.

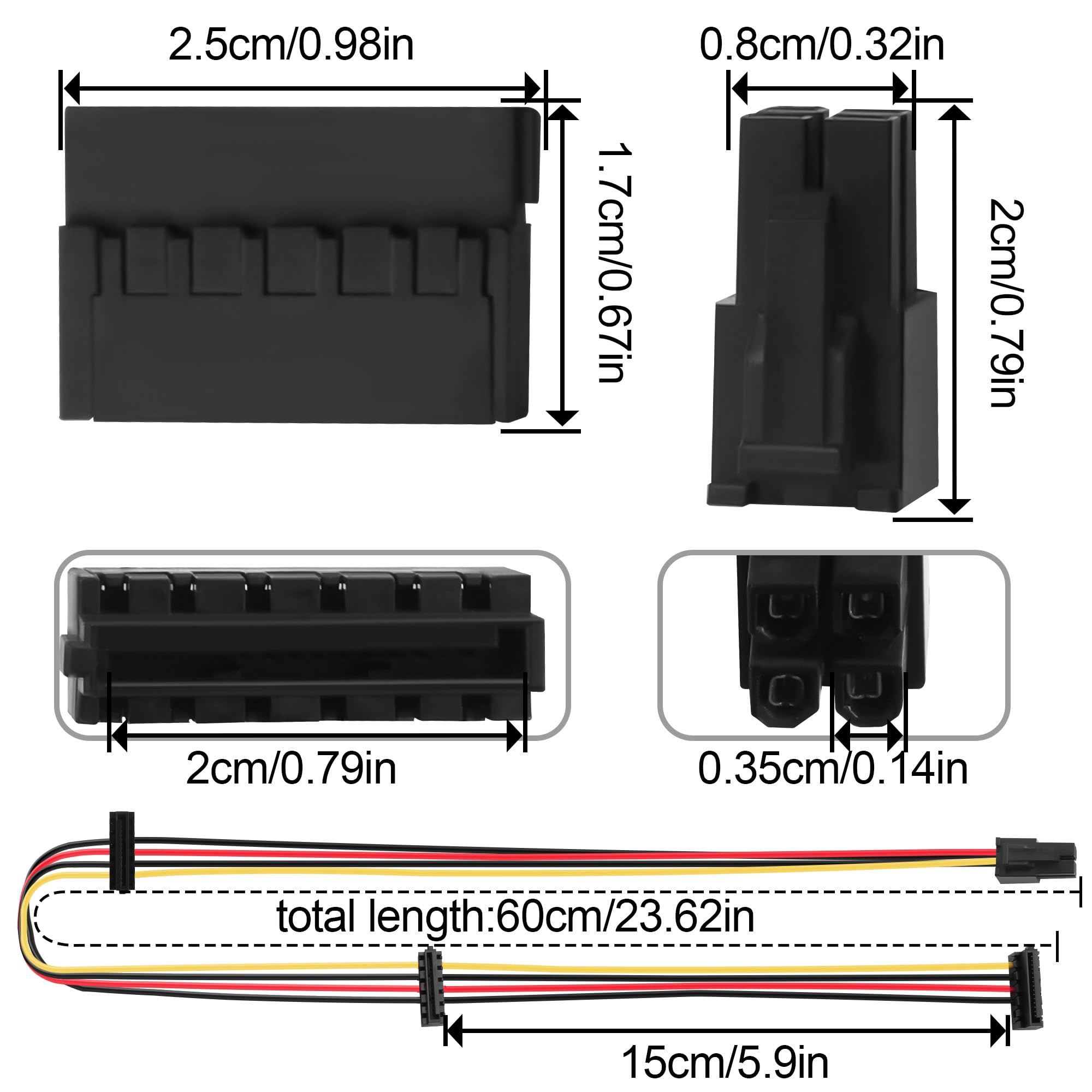

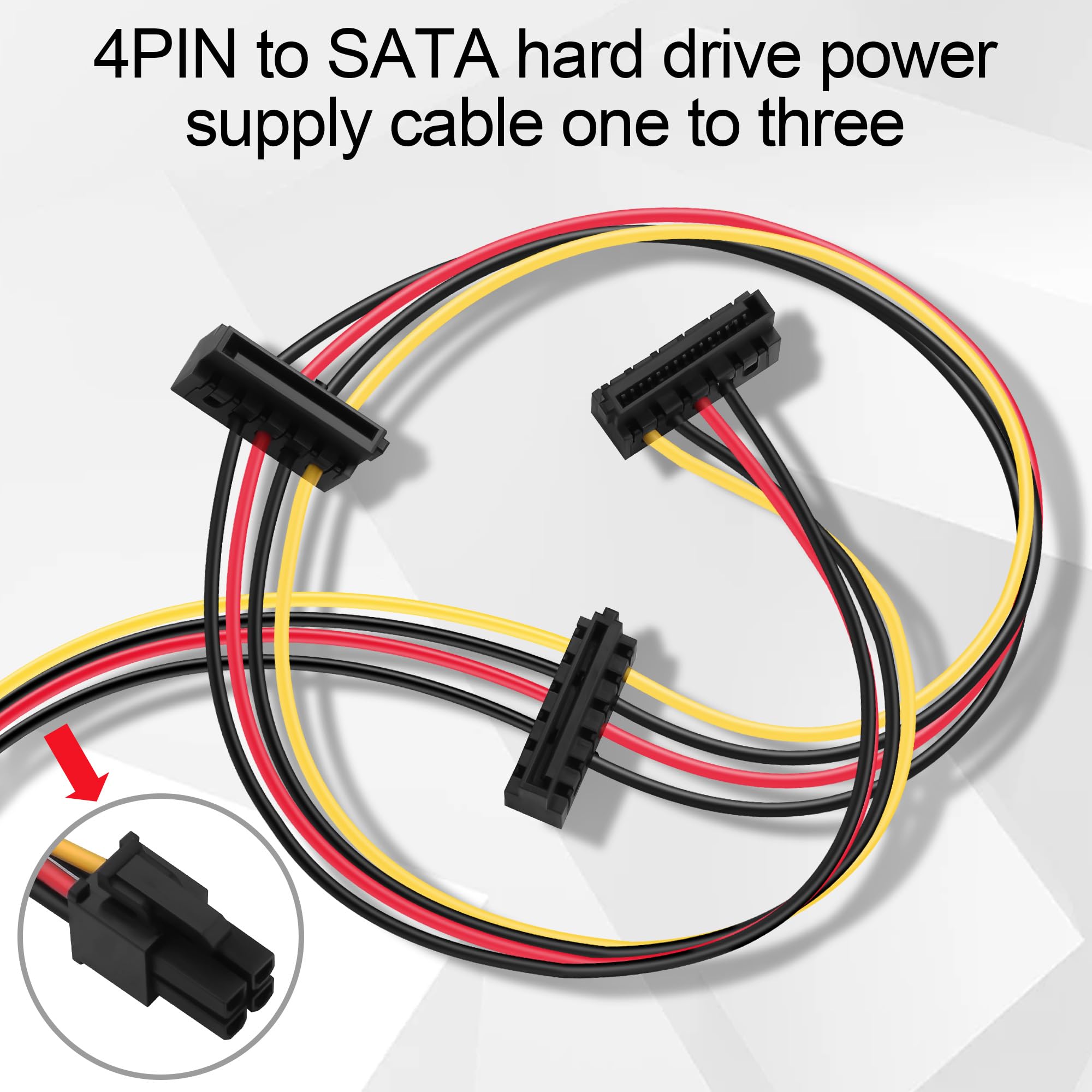

•The wire with a total length of 60cm is matched with three SATA plugs with a uniform spacing of 15cm, which can not only meet the power supply requirements of equipment in different positions in the chassis, but also avoid the disorderly winding of the wire; The one-to-three design can supply power to multiple devices such as hard disk, CD-ROM drive, solid-state hard disk, etc. at the same time, without additional splitter, thus improving the installation efficiency.
•The whole wire is designed with black skin, which is highly integrated with the internal environment of the chassis, and the wiring is hidden and unobtrusive, keeping the interior of the desktop equipment clean and beautiful; The configuration of two black ground wires further strengthens the stability of the circuit and makes it more secure to use.
