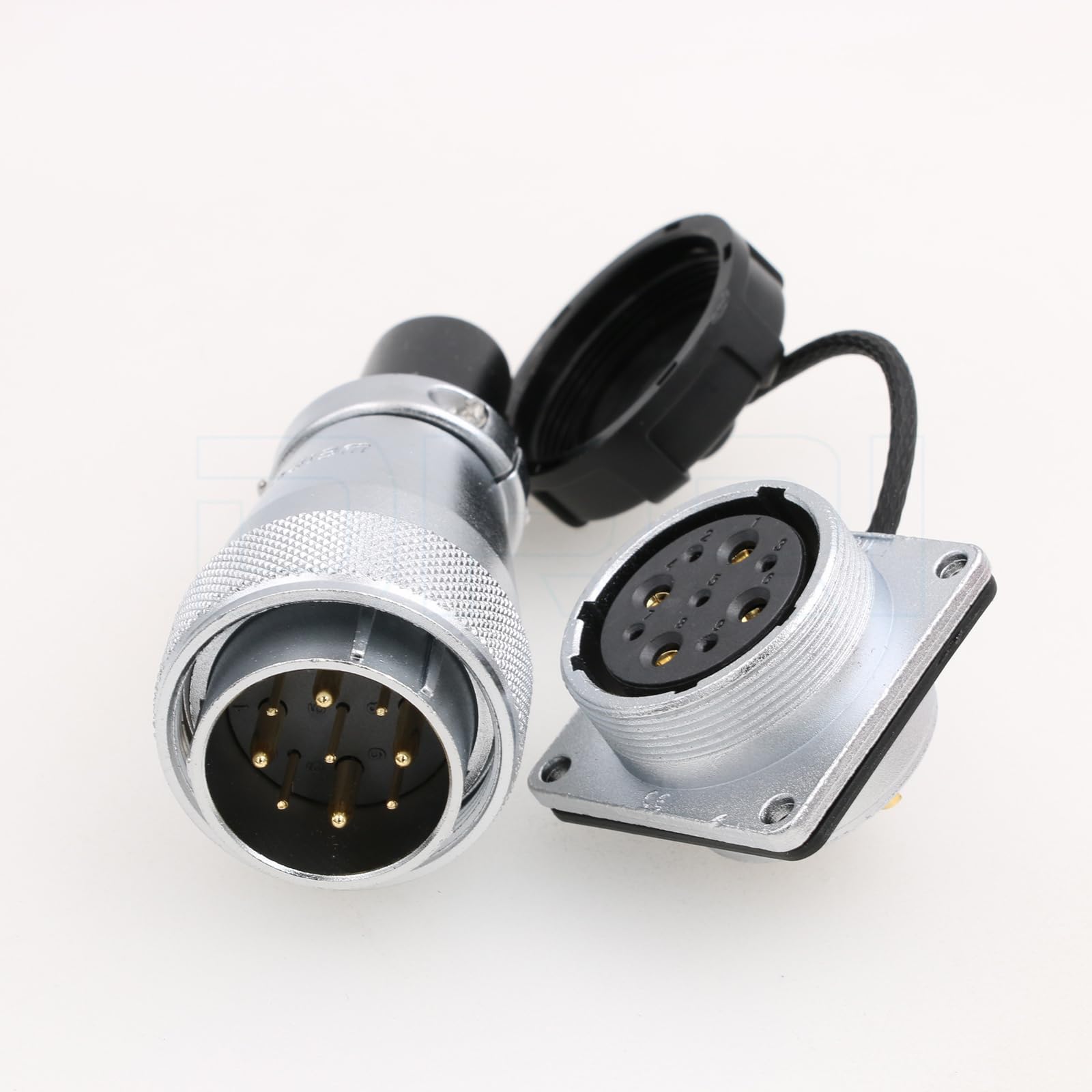

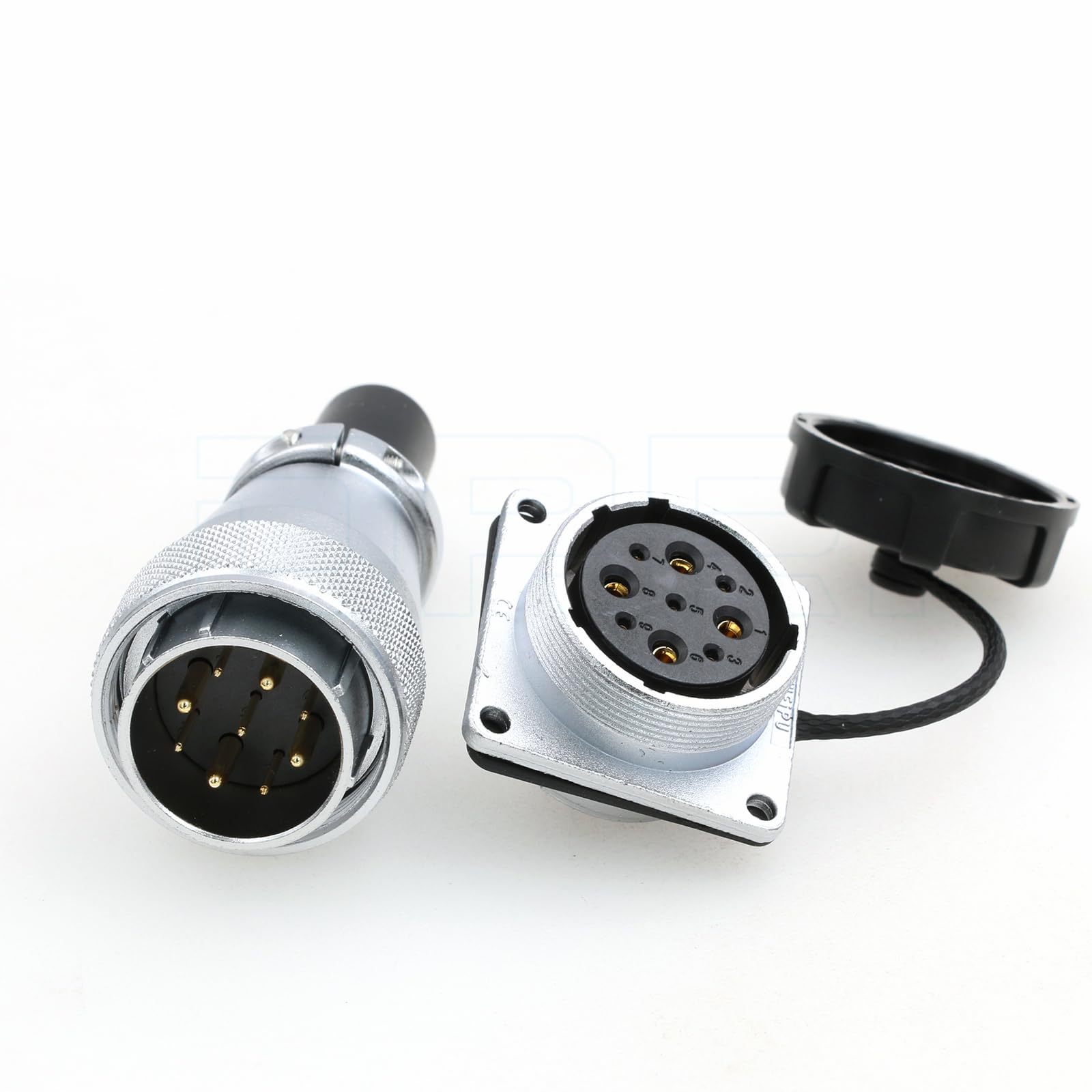

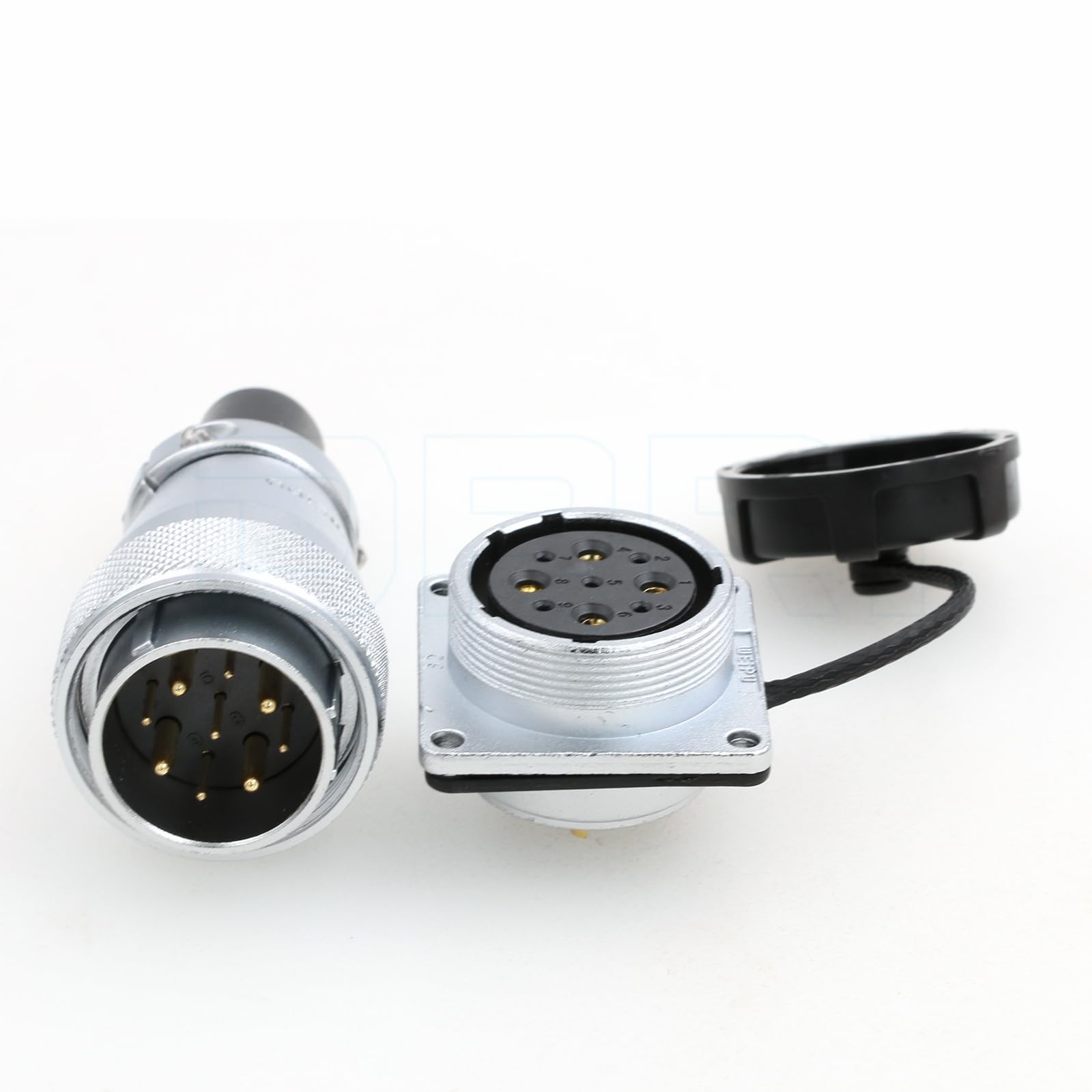

DRRI WEIPU WS28 9-Pin Heavy Duty Industrial Bulkhead Male Plug Female Socket Bulkhead Industrial Aviation Connector Square Flange Panel Mount
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Rated Current / Voltage : 25A, 5A / AC 500V;Withstand Voltage : AC 1500V;Pin Quantity :9Pin;Contact Diameter: Φ2.5x4, Φ1x5,Contact resistance: 1/ 5mΩ ;Wire Size: ≤4mm² /11 AWG or <0.785m㎡/18AWG
•Available for panel cut-outs of 28.5mm between 2 pin up to 32 pin gold plated contacts with either solder terminations square flange style panel connectors.
•The WS28 series is perfect for indoor power or data applications including Lighting, Data Transfer and Industrial Control Systems.Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
•Contact material:Brass with gold plating;Shell material:Zinc alloy with chrome plating;
•Different pins please refer to the left attached Parameters drawings.if you need other model,you can contact us.
