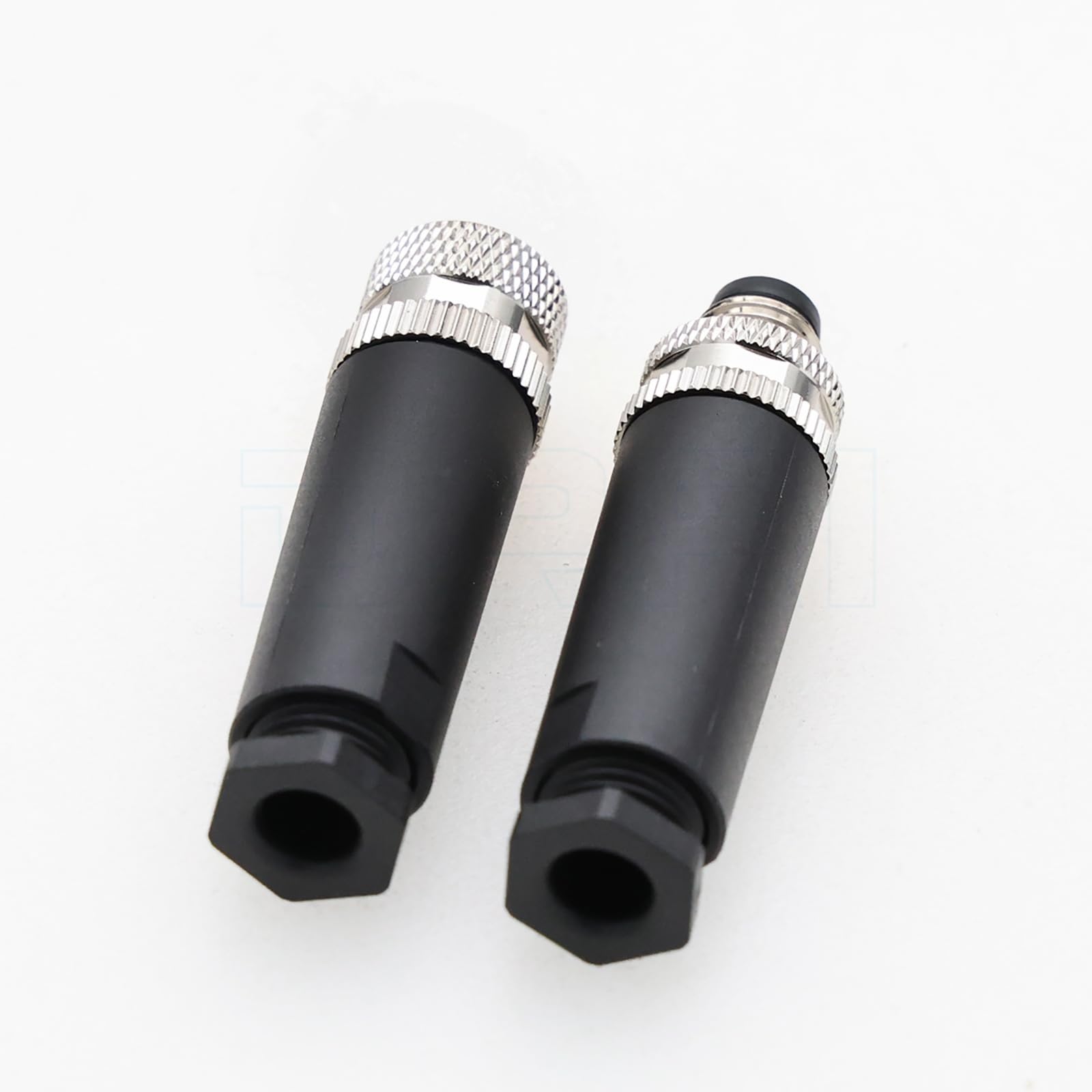

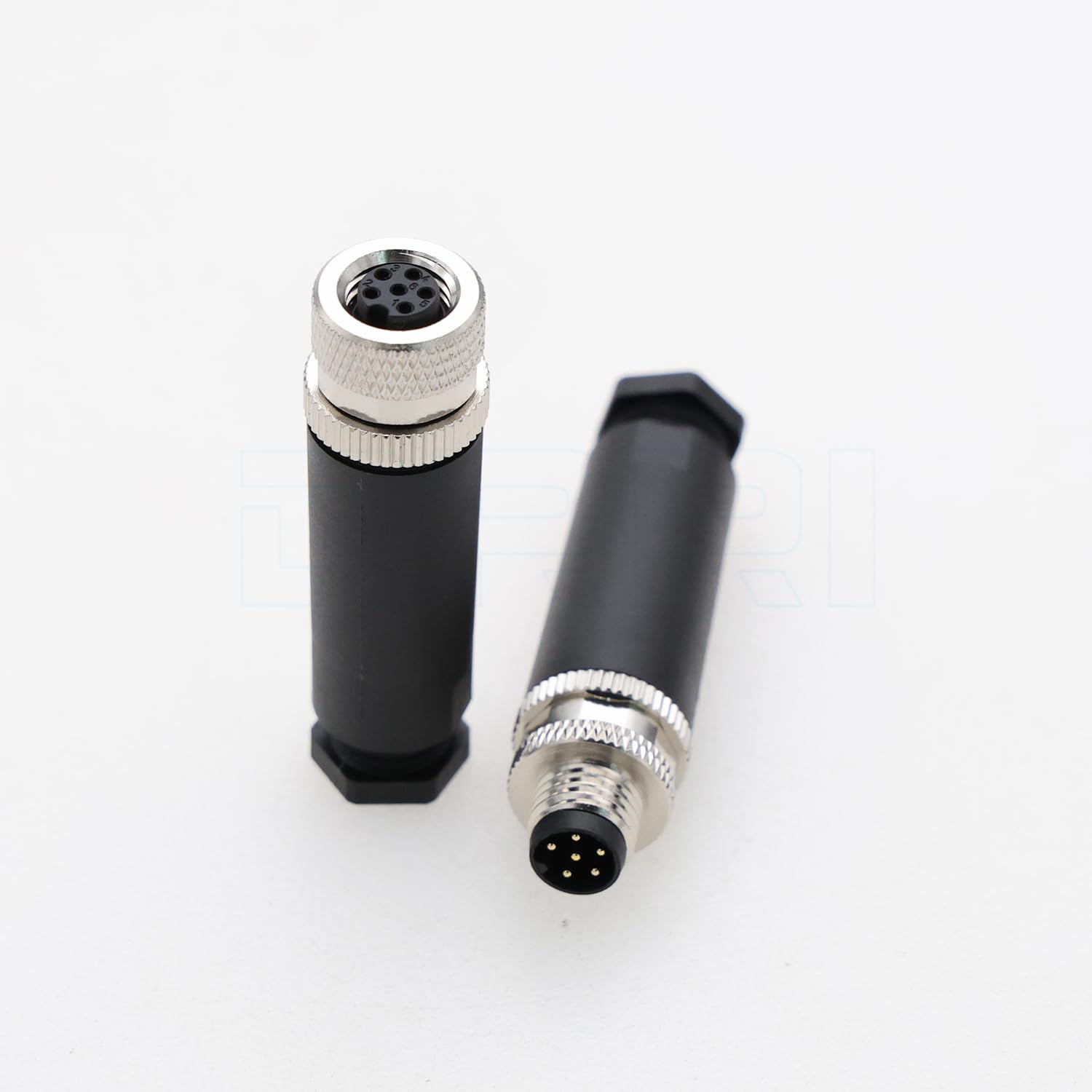

DRRI M8 6pin A Coding Male Female Waterproof Circular Sensor Quick Connect and Disconnect couping Connector Solder Type 2 Pcs
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•M8 Field Wireable Connector ，A-codeing, IP67 Waterproof , 6pin male+female type,screw connection,but also divided into straight and elbow；Easy quick connect and disconnect coupling;
•Coding : A code；Rated voltage : AC/DC 30V；Rated current : 1.5A；Cable Diameter ：3.5-5mm; Termination : Solder

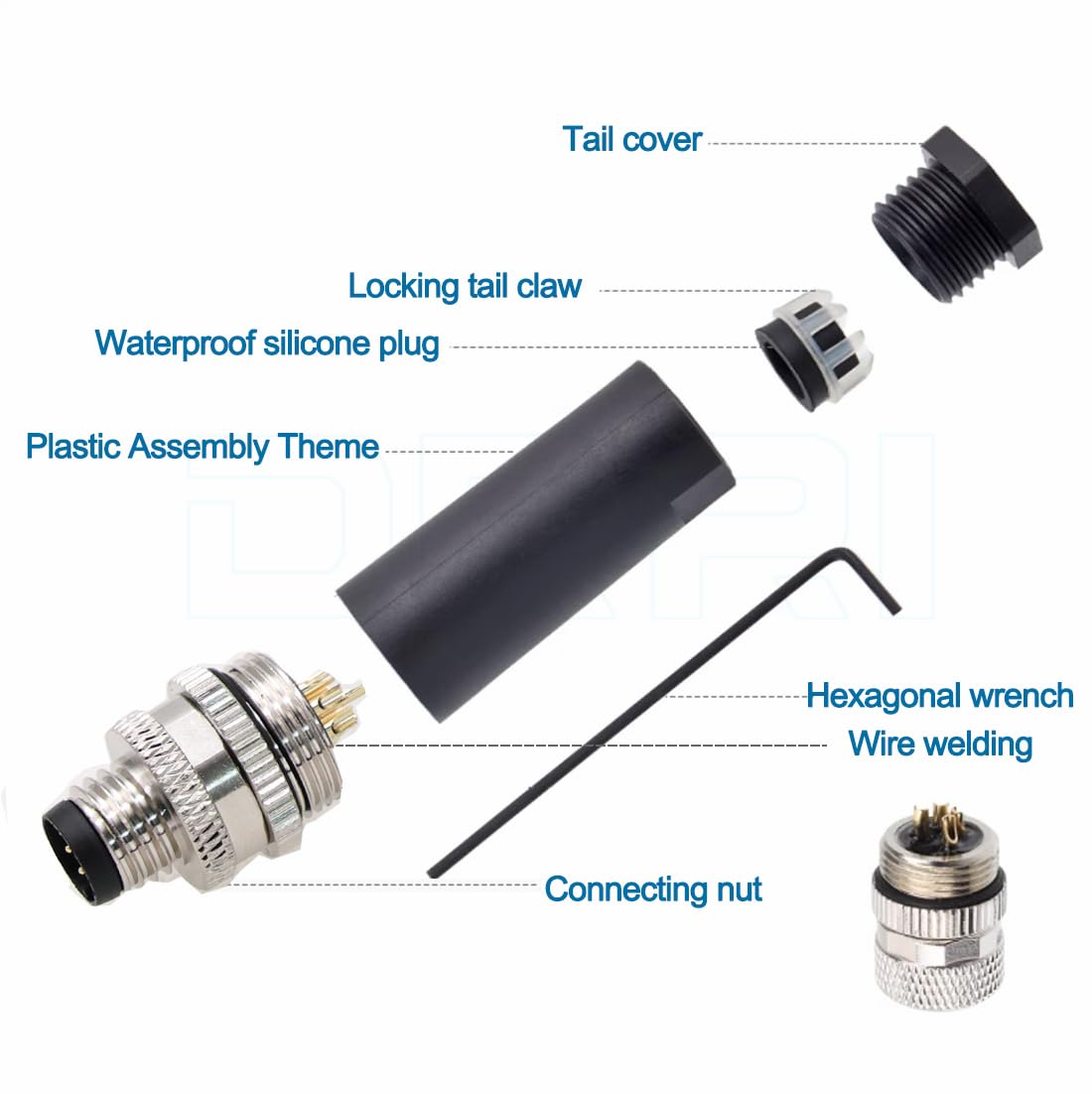

•M8 connector assembly has brass with gold plated, Coupling nut/screw: Brass with nickel plated screw, while ensuring the stability and reliability of data and signals
•M8 cable connector can easily wire on site, the wiring method is through the lock terminal. Thereby, the signal transmission between the host of the automation equipment and the signal collection equipment is realized.
•Appliance: M8 connector are widely used in external light boxes, construction machinery, electrical equipment, mining machinery, marine machinery, automotive equipment, production automation equipment, temperature sensors, hydraulic machine tools, sensors, solenoid valves, gauges, pressure transmission devices, etc.
