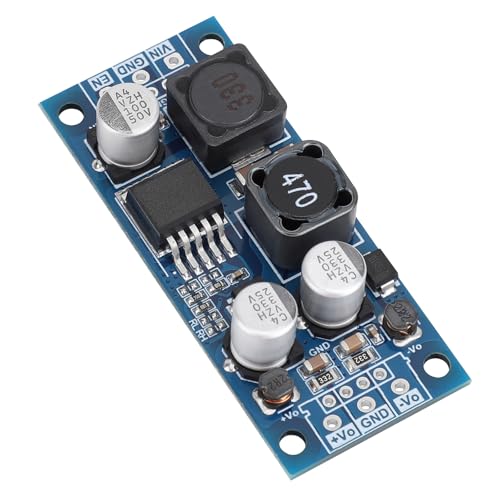

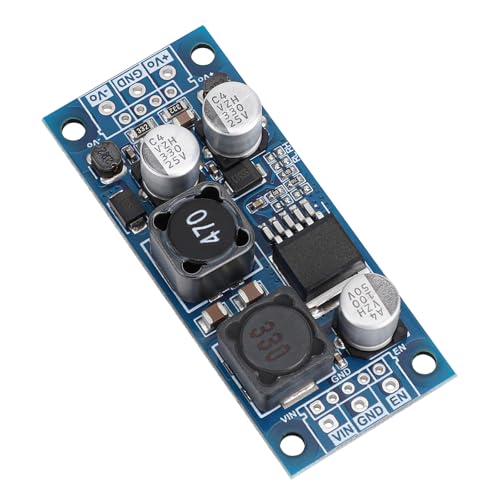

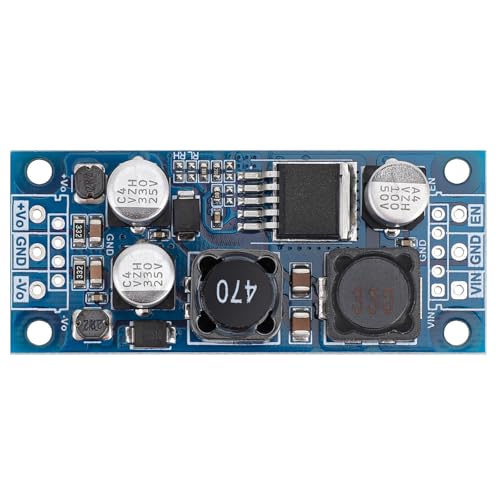

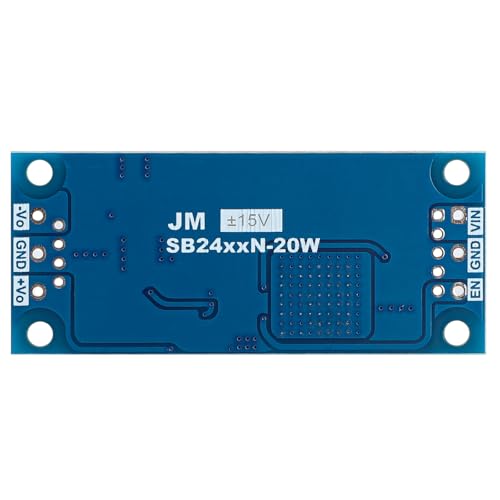

DROK Micro Dual Power Supply - DC to DC Buck Boost Converter 4.8-35V to ±15V Positive Negative Dual Output, Step Up Voltage Regulator for OP-Amps
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•DROK micro voltage converter with low voltage input range DC 4.8-35V, positive and negative dual output voltage is ±15V, rated output current is 660mA.
•APPLICATION: the step-up regulator module is suitable for sensor, operational amplifier, audio and other devices that needs positive-negative power output.

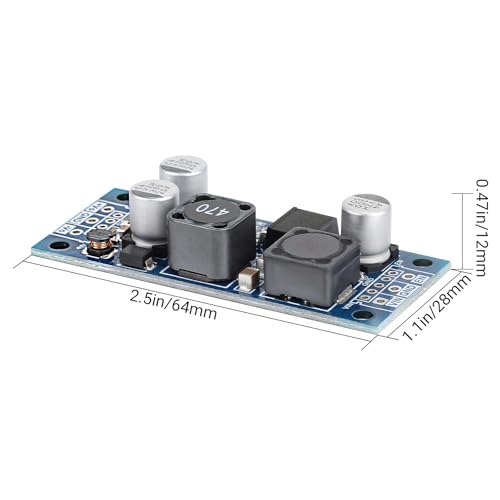

•SMALL MODULE HIGH EFFICIENCY: DROK boost converter is with small dimension 64x27.5x12.5mm; the small module conversion rate can be up to 88%.
•TWO MOUNT METHODS: the volt transformer module not only support row pin welding, but also lead mounting, which will be convenient for your use.
•NOTE: please note that although the module is with short circuit protective function, it can not in long continuous short circuit, or it will be damaged.
