DIYmalls BE-180 GPS Receiver Module TTL 10th Chip 38400bps for Arduino FPV Aircraft CC3D Flight Control, Replace BN-180 GPS

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•-be180 GPS equiped with 10th chip to replace the bn180 gps, more accurate and receiving signal faster.
•-Baud Rate: 4800bps to 921600bps, default 38400bps( Remember it is NOT 9600bps).

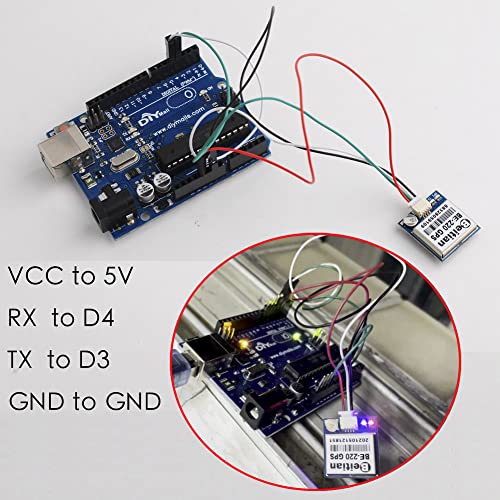

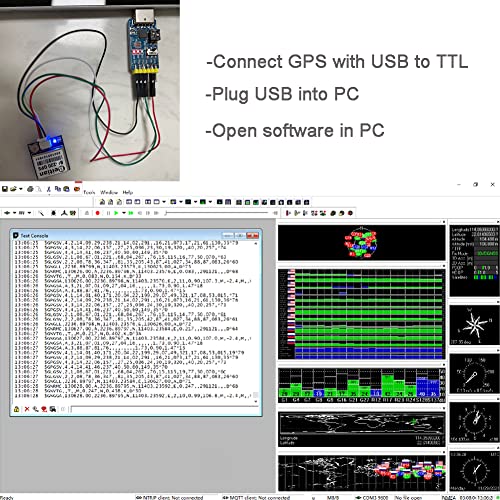

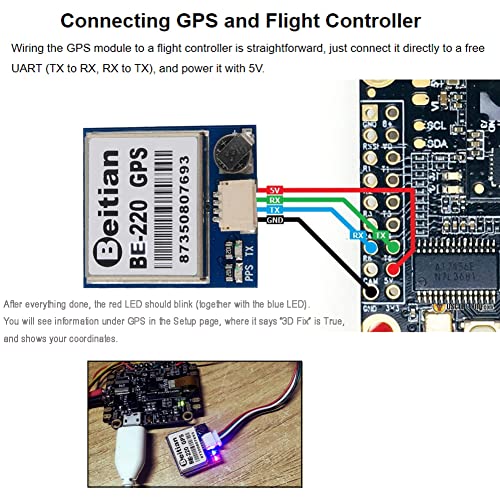

•-be 180 module connection with flight control, usb to ttl and develop board: gnd to gnd, tx to rx, rx to tx, vcc to 5v.
•-be-180 gps should be used outdoor, and the antenna side facing to the sky.
•-The blue (TX) light flashes when power on, indicating there is data output.

From USA

NewDIYmalls

DIYmalls BE-180 GPS Receiver Module TTL 10th Chip 38400bps for Arduino FPV Aircraft CC3D Flight Control, Replace BN-180 GPS

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•-be180 GPS equiped with 10th chip to replace the bn180 gps, more accurate and receiving signal faster.
•-Baud Rate: 4800bps to 921600bps, default 38400bps( Remember it is NOT 9600bps).
•-be 180 module connection with flight control, usb to ttl and develop board: gnd to gnd, tx to rx, rx to tx, vcc to 5v.
•-be-180 gps should be used outdoor, and the antenna side facing to the sky.
•-The blue (TX) light flashes when power on, indicating there is data output.
