NewCremat Inc

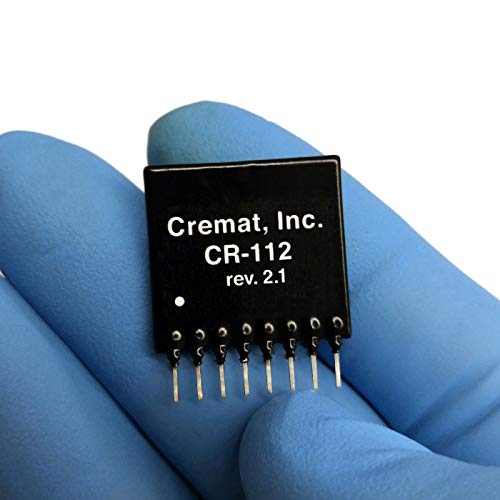

CR-112-R2.1 Charge Sensitive preamplifier Module
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Full specification sheet available at cremat.com
•Equivalent noise charge (ENC): 7000 electrons rms with input unconnected and with 1us shaping time.
•Gain: 13 mV per picocoulomb
•Fastest output pulse rise time: 3 ns. Note: this figure is adversely affected by capacitance at the input.
•Unsaturated output swing: -3 volts to + 3 volts with unloaded output
