CNLINKO LP-16 3 Pin Right Angle IP68 Waterproof Connector Screw-Assembly Circular Aviation Plug and Flange Panel Mount Socket Kit for Industrial Outdoor Equipment
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

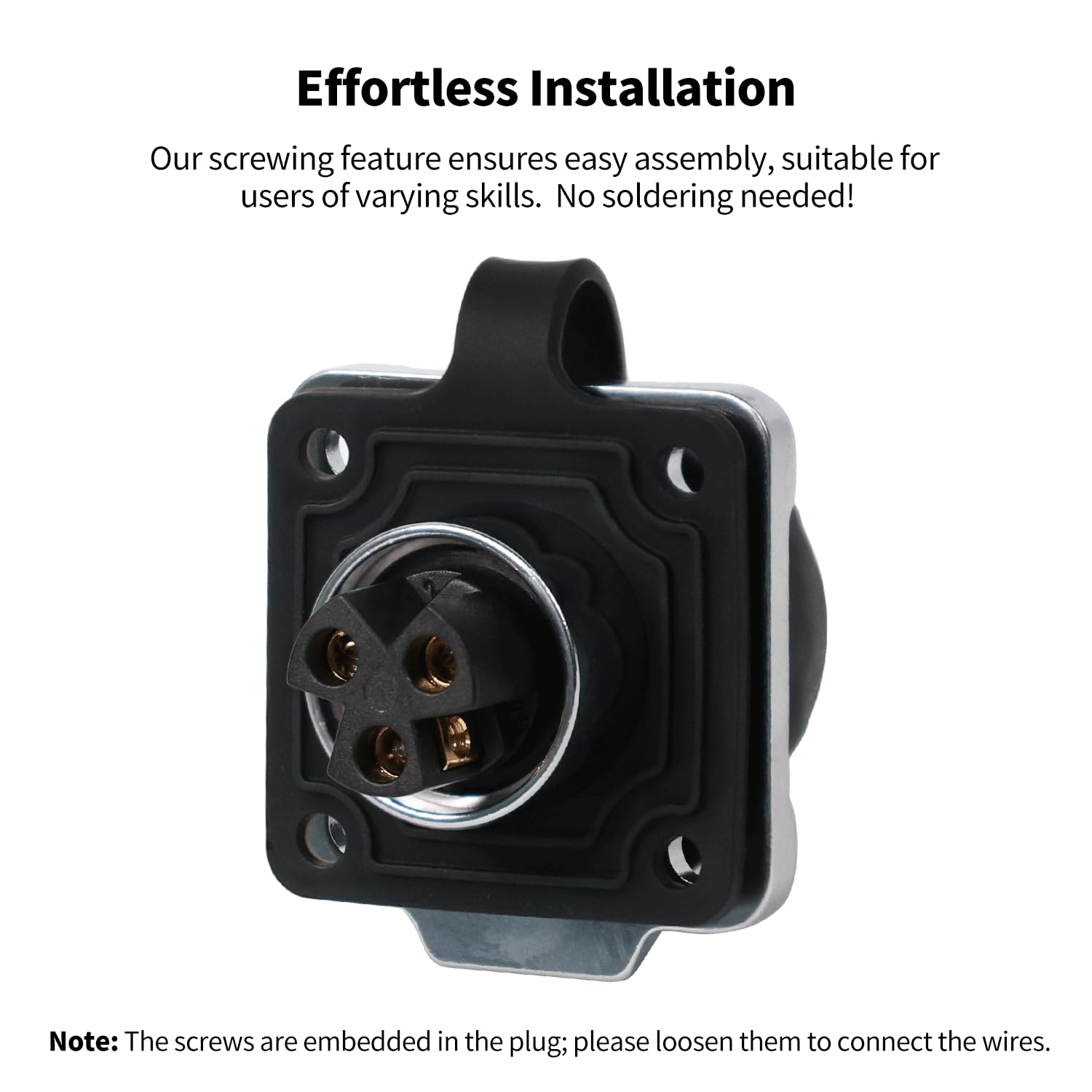

•LP16 3-Pin Connector: This 90° male plug and female socket provide a quick-connect solution. Its intuitive design ensures easy and secure plug/unplug. Screw-assembly type, no soldering required. The screw-in design ensures effortless installation for users of any skill level, enabling plug-and-play setup and easy troubleshooting. Note: The connection screws are embedded in the plug and socket. Loosen the screws slightly to connect.

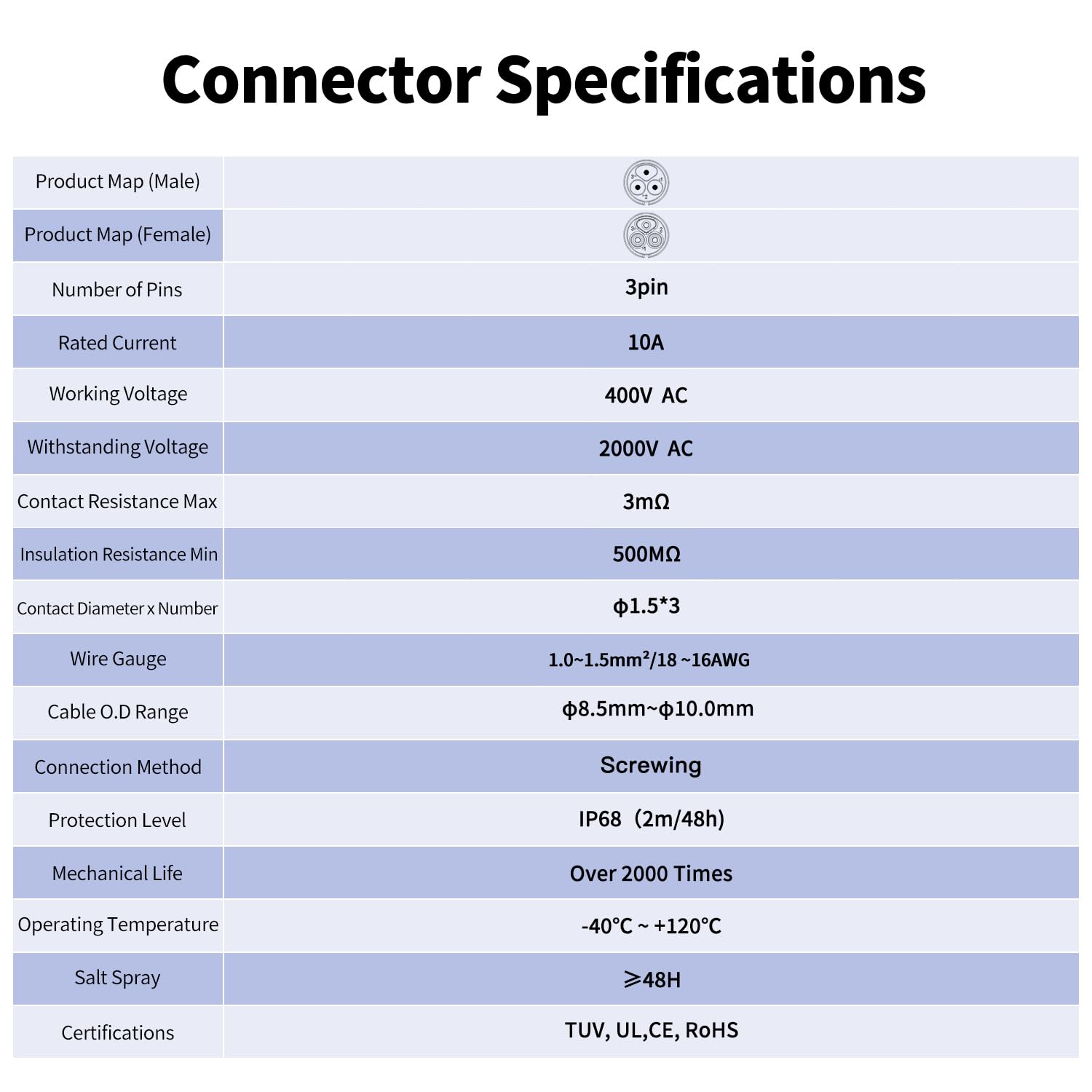

•Standard Specifications: Capable of supporting 1.0-1.5mm²/18-16AWG cable with a diameter of Φ8.5mm~Φ10.0mm. It handles 10A current, 400V voltage, and withstands 2000V. Contact resistance is <3.0mΩ, insulation resistance is >500MΩ. The connector is designed for over 2000 cycles at temperatures ranging from -40°C to 120°C. Contact Diameter × Number: Φ1.5x3. Note: Avoid charging during insertion.

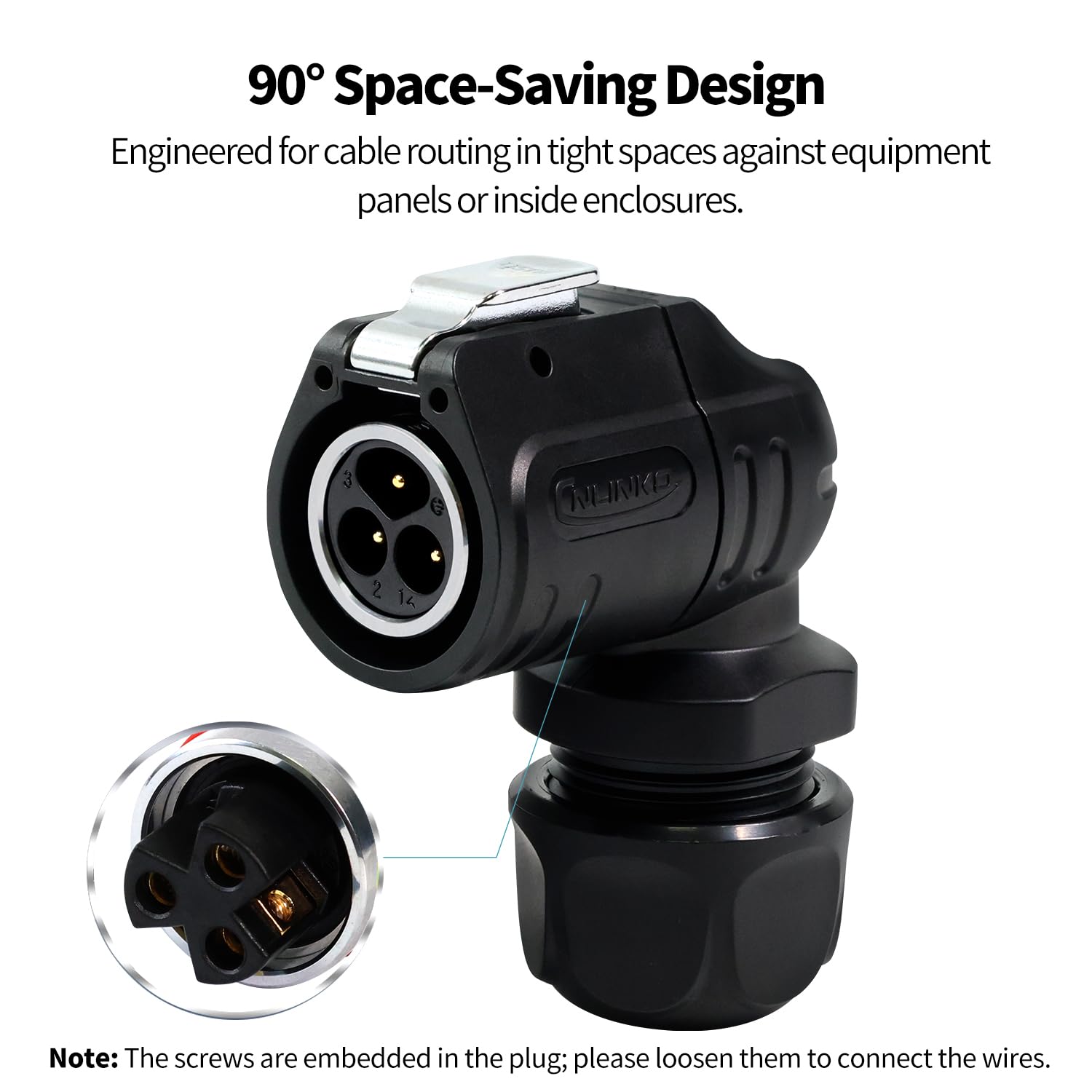

•Space-Saving 90° Design: The unique right-angle design allows for cable routing in tight spaces,reduce stress on the cable entry point, prevent sharp bends, and achieve a cleaner, professional installation against equipment panels or in enclosures. Features a guided slot and polarization structure to prevent incorrect mating, ensuring safe and secure connections.
•Robust Materials: Made with high-strength engineering plastic for the shell, zinc alloy (pearl chrome-plated) for metal parts, and gold-plated copper alloy contacts. Silica gel sealing ensures protection against moisture, dust, and corrosion. Industrial-grade construction offers electrical performance, high temperature resistance, and long-lasting durability.
•Versatile Industrial Applications: With an IP68 protection rating when mated, it effectively resists dust, moisture, and harsh environments. Ideal for wire connections in lighting, robotics, power supplies, machinery, automotive, marine, outdoor power tools, industrial sensors, control cabinets, automation systems, renewable energy, communication devices, heavy machinery, and aerospace applications.
