CNLINKO DH-24 USB 3.0 Connectors, Male Plug with 20 Inches Cable, Type A Female Metal Socket, Panel Mount Receptacles Socket, IP68 Waterproof Connector, M24 Signal Connectors (USB 3.0 Set)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

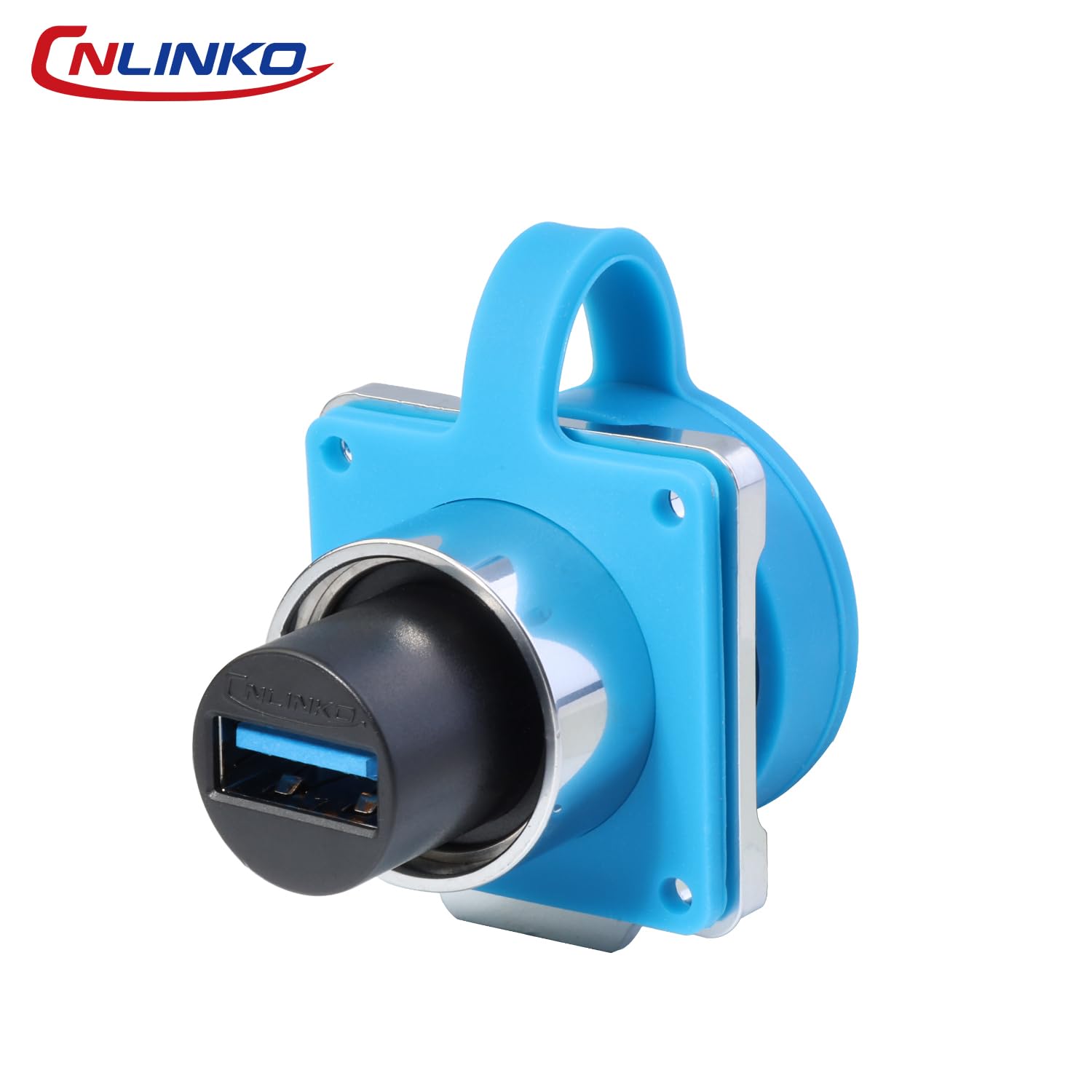

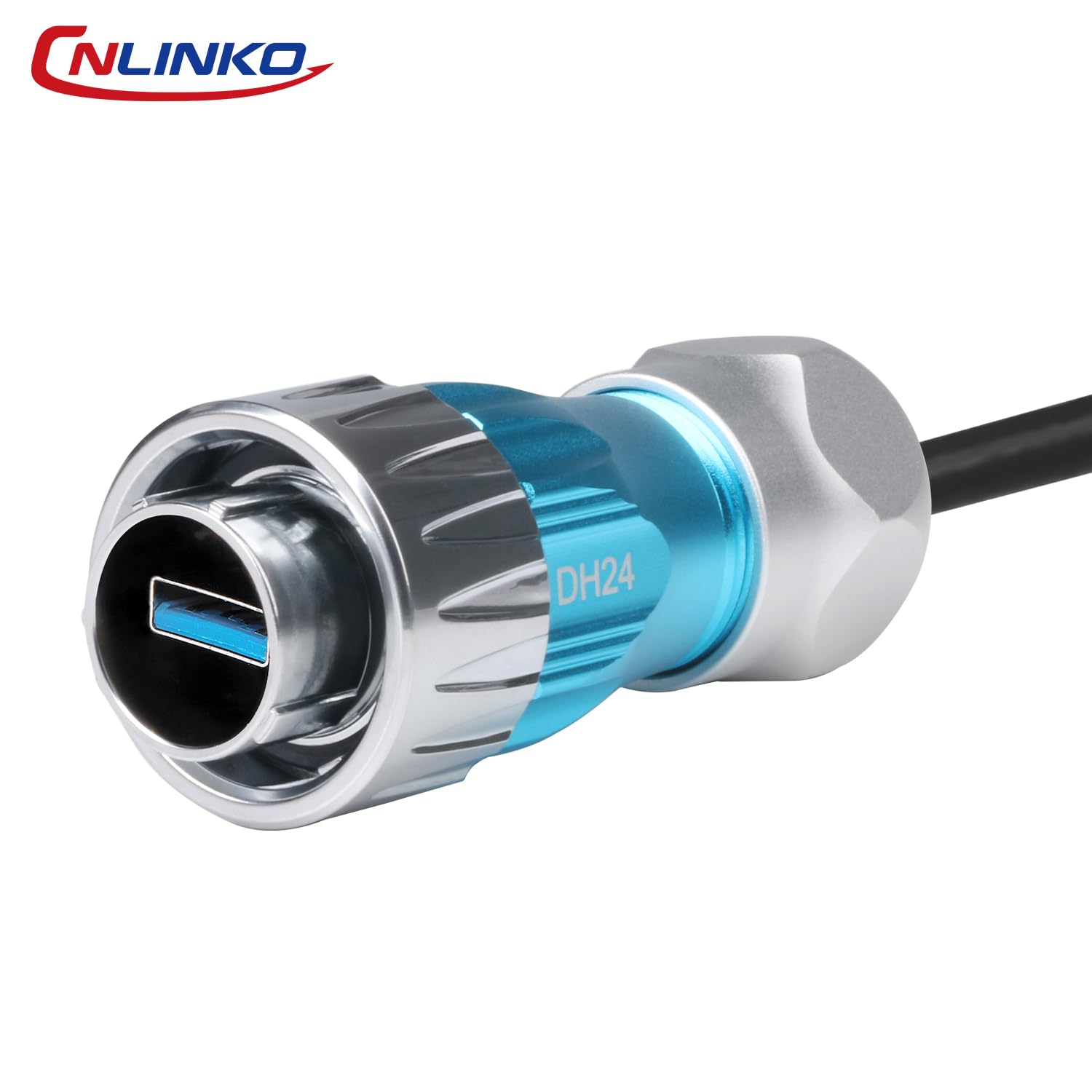

•DH24 USB 3.0 Connector Set: It includes USB 3.0 female socket and USB 3.0 type A male plug features with 20 inches cable. Designed with intuitive plug/unplug mechanism ensures a hassle-free experience while maintaining a secure connection. Protection Level: IP68 (Mated).

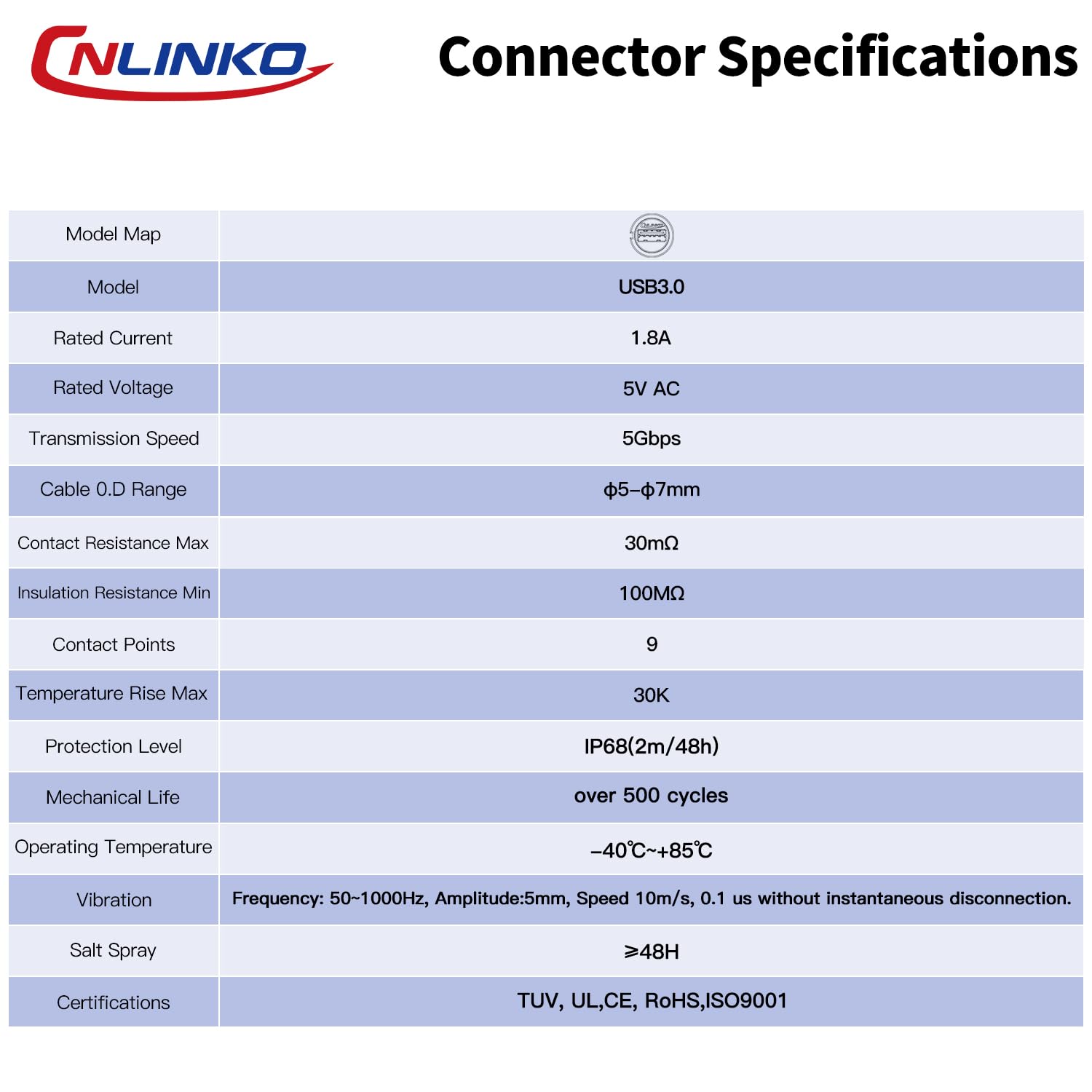

•Standard Specs: Supports wire gauge of Φ5.0~Φ7.0mm. Handles 1.8A current, AC 5V voltage. 5Gbps transmission rate. Contact resistance is ≤30mΩ, insulation resistance is ≥100MΩ. Contact Points: 9PCS. Designed for over 500 cycles at temperatures ranging from -40°C to 85°C.
•Robust Protection: With an IP68 mated protection level, this set offers robust shielding against dust, moisture, and other environmental factors when the connectors are engaged. Your connections remain intact, reliable, and free from potential disruptions even in harsh environments.
•Premium Material: the USB 3.0 connector's metal shell and insulating parts combine the excellent properties of metal and high-performance engineered plating, good flame and pressure resistance to ensure a long service life. Copper alloy and gold plating on the contact points ensure excellent conductivity.
•Versatile Applications: The DH24 connectors excel in data and signal processing and are ideal for applications such as automation equipment, Internet equipment, solar energy equipment, electronic equipment, machinery, instrumentation, marine, vehicular equipment, cleaning equipment and LED displays.
