cablecc 50Pin mSATA Low Profile 3050 SSD 5x3cm to 6Gbps 22Pin 2.5" SATA 3.0 Disk Adapter PCBA
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

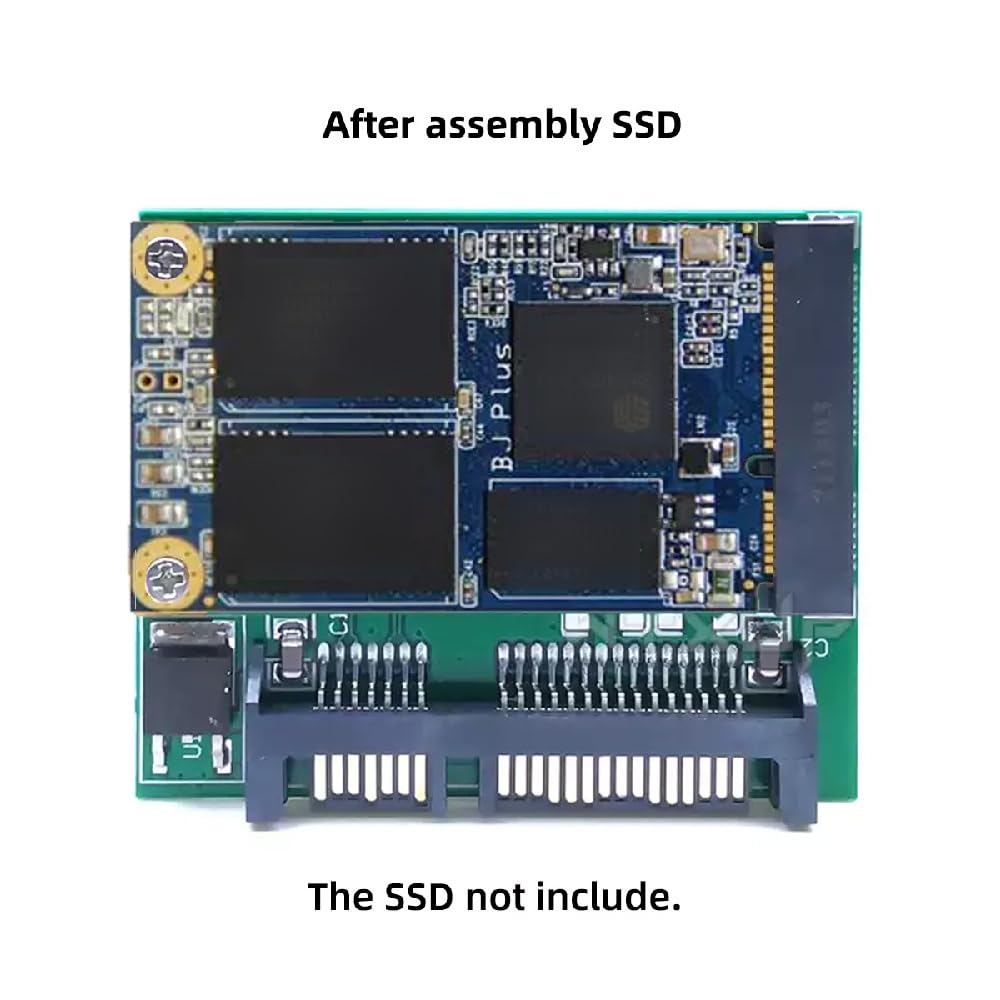

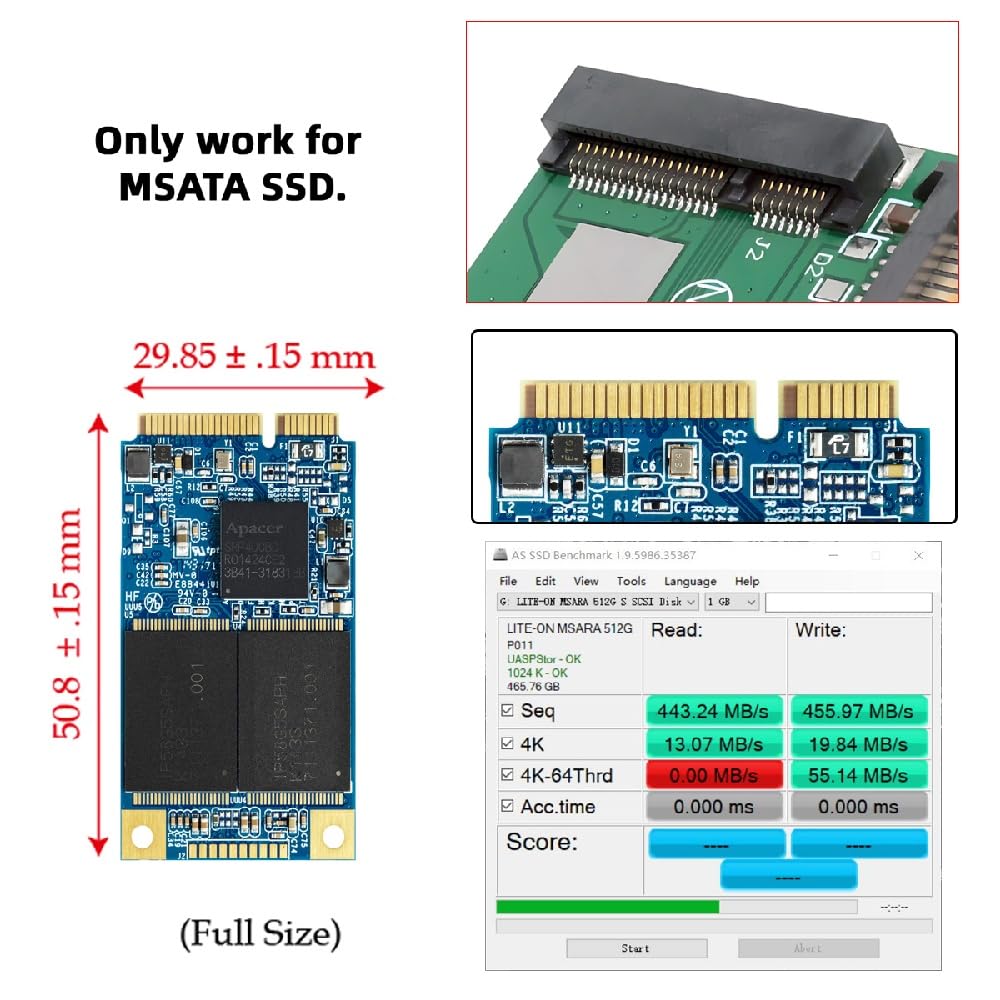

•1)Support 30 mm*50 mm size mSATA SSD converted into a standard 2.5" SATA6.0Gbps interface; The speed and other properties is not changed,only form conversion interface,because such transformation does not need through the integrated circuit chip.
•2)This product can support 30 mm*26 mm size mSATA SSD if change the position of the location column in the adapter card. (You need to change it yourself).
•3)Fully compatible with SATA interface mechanical hard drives/SSD solid state hard drives/optical drives, etc. Support Windows 7/8/10/11, Windows Server 2008 R2/2012 R2/2016/2019/ Mac OS / Linux / FreeNAS and various NAS operating systems.

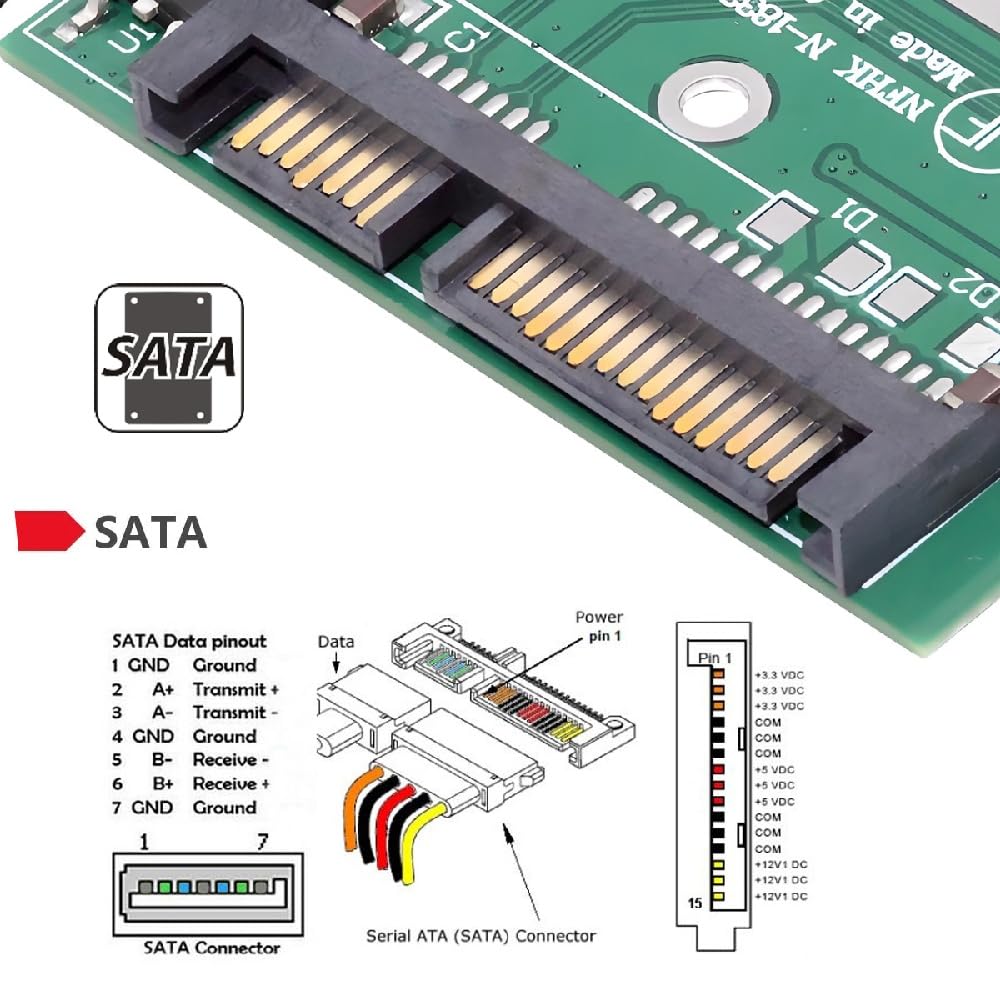

•4)SATA3.0 22pin interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0Gbps, 3.0Gbps, 1.5Gbps.
•5)Note: This adapter is only compatible with MSATA connector. Not compatible with 50mm Mini PCI-e SATA and Mini PCI-e PATA.PCBA size: 57*46mm
