AURSINC Upgraded NanoVNA-F V2 Vector Network Analyzer 50kHz-3GHz with RF Demo Tester Board, 4.3inch with 5000mAh, Measuring S-Parameters VoltagSWR, Phase, Delay, Smith Chart, RTC Realtime
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•[With RF Demo Kit - Evaluating & Learning] The RF Demo Kit is a NanoVNA RF test board independently designed by BH5HNU, with a size of 10*10cm / 3.94*3.94 inch. The demo calibration board for evaluating and learning nanaovna vector network analyzer, antenna analyzer test calibration learning, making sure your setup is working
•[Improved Frequency Range] The measurement range of NanoVNA-F V2 is 50KHz-3GHz. TX/RX method can measure full S11 and S21 parameters, S21 dynamic ranges: 70 dB (1.5GHz), 60dB (3GHz); S11 dynamic ranges: 50 dB (1.5GHz), 40 dB (3GHz). The harmonic expansion of the output signal of the clock chip SI5351 is used to measure the frequency to 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (the standing wave ratio is less than 1.02)
•[4.3 inch Large Touchscreen & Powerful function] The nano vna f v2 features a 4.3-inch IPS LCD display (800*480) and a resistive touch screen, providing a wide viewing angle and minimizing eye strain during prolonged usage. It enables measurements of S-parameter, voltage standing wave ratio (SWR), phase map, group delay, Smith chart, DELAY, POLAR, LINEAR and more
•[5000mAh High Capacity Battery & Aluminium Housing] NanoVNA F V2 is equipped with an 5000mAh 3.7V battery for longer standby time, and extended USB interface. A standard aluminum casing is used to safeguard the SMA connector and minimize the impact of external electromagnetic waves on the instrument

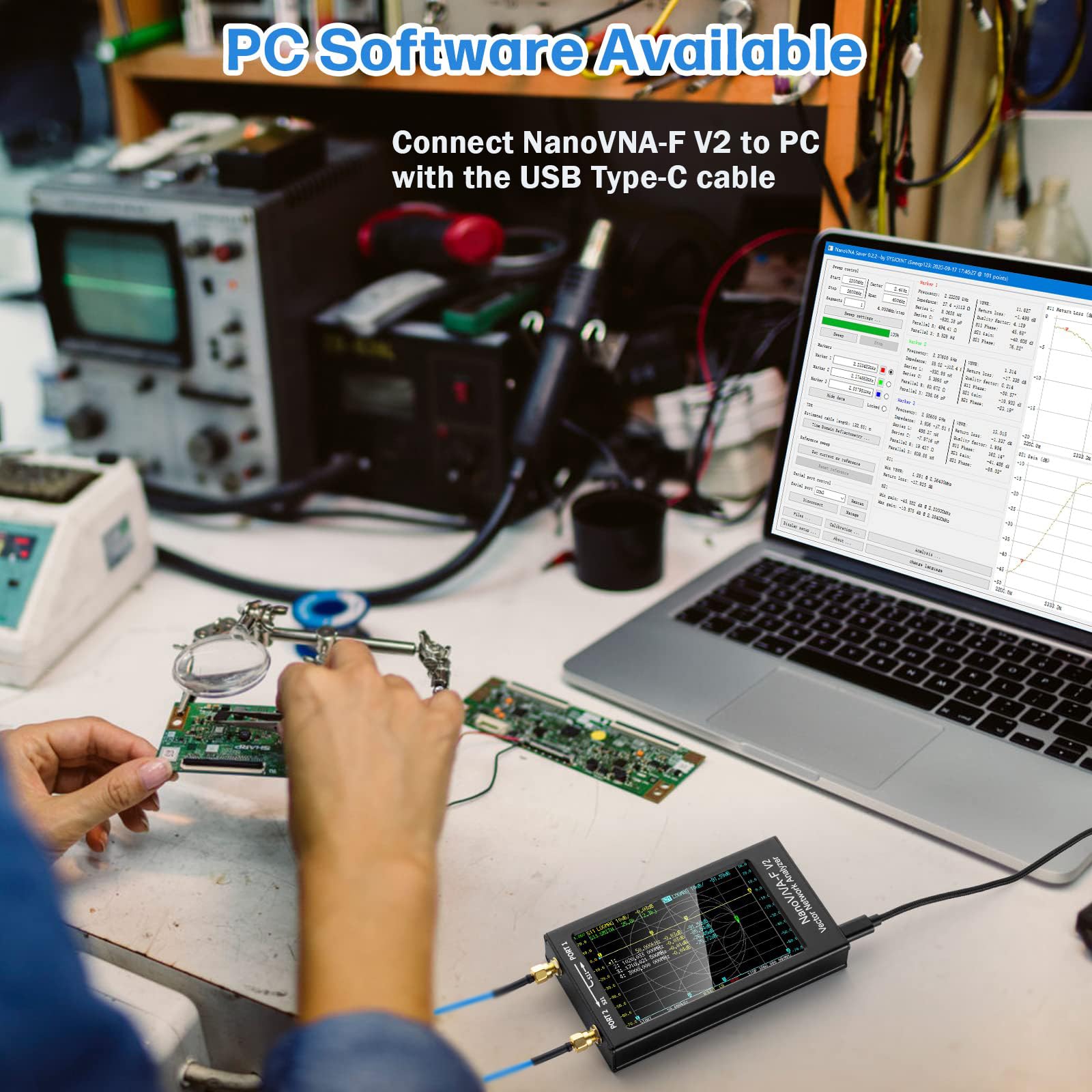

•[PC Software Control Available] Using PC software NanoVNA Saver, it can connect to the NanoVNA, extracts data for display and save data in Touchstone files. The PC software enables us to export Touchstone (snp) files for various radio design and simulation software. Allows for firmware upgrades through a virtual USB drive without the need for programmer, using the included USB Type-C cable to upgrade firmware
•[Abundant Accessories] 1x NanoVNA f v2 host, 1x RF Demo Kit; 1x SMA Open Calibration Kit, 1x SMA Short-circuit Calibration Kit, 1x SMA 50Ω Load Calibration Kit, 1x SMA-KK Double-Head Female Hole Adapter, 1x SMA-JJ Double-Head Male Pin Adapter, 1x SMA-JKW Elbow Outer Screw Inner Hole To Inner Screw Inner Needles Adapter, 2x 20cm SMA-JJ RG405 RF Cable, 1x USB Type-C Data Cable, 1x Stylus
