ANMBEST Constant Current CC CV Buck Converter Module DC 6-40V to 1.2-36V 20A 300W Adjustable Step Down Voltage Regulator Power Supply Module with Short Circuit Protection Function
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Anmbest buck converter input voltage range is DC 6-40V, adjustable output voltage range is DC 1.2-36V, can be used to convert 24v to 12v 5v, adjustable output current range is 0-20A, max output power is 300W. The step down regulator can apply to constant output current.
•With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 95%,(measured at 20A, converting 24V to 12V).

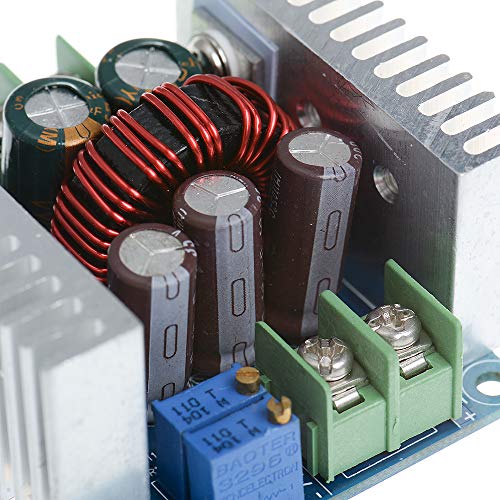

•It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Wiring is convenient with these large current 30A screw terminals.
•The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.
•Application: Motors, audio, monitor, LED car display, air conditioner, fans, solar energy, photovoltaic energy, DVD, LED lights, pumps, industrial equipment appliances, etc.
