Alvins XHP20 2 Pin Waterproof Connectors Male Female Plug Socket Industrial Power Connector for Power Equipment,LED Lighting,Medical and Indoor/Outdoor Equipment Wire Connections (2 Pin)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【Wide Application】Connector is ideal for any equipment for home network,stage equipment,smart grid,security cameras,medical equipment,audio/video,LED lighting,solar energy equipment,ship equipment,electric power equipment,vehicle equipment, communications equipment,heavy machiner,etc.
•【High-Quality Material】Our Connector uses PBT High Performance Engineer Plastic with stability, waterproof, temperature resistance and anti-deformation. Using gold-plated contact with the superior performance of corrosion resistance and electrical conductivity effectively,does not oxidize, prolongs service life.Flame retardant grade: UL94-V0.
•【 Waterproof 】 The connector design uses the multilayer waterproof and sealing system, from the plug, socket the two ends of the sealed waterproof rubber ring, to the end of the clip line waterproof ring. Can withstand all kinds of bad weather, no matter indoor/outdoor, the machine still can maintain good working performance.Waterproof protection level: IP67.

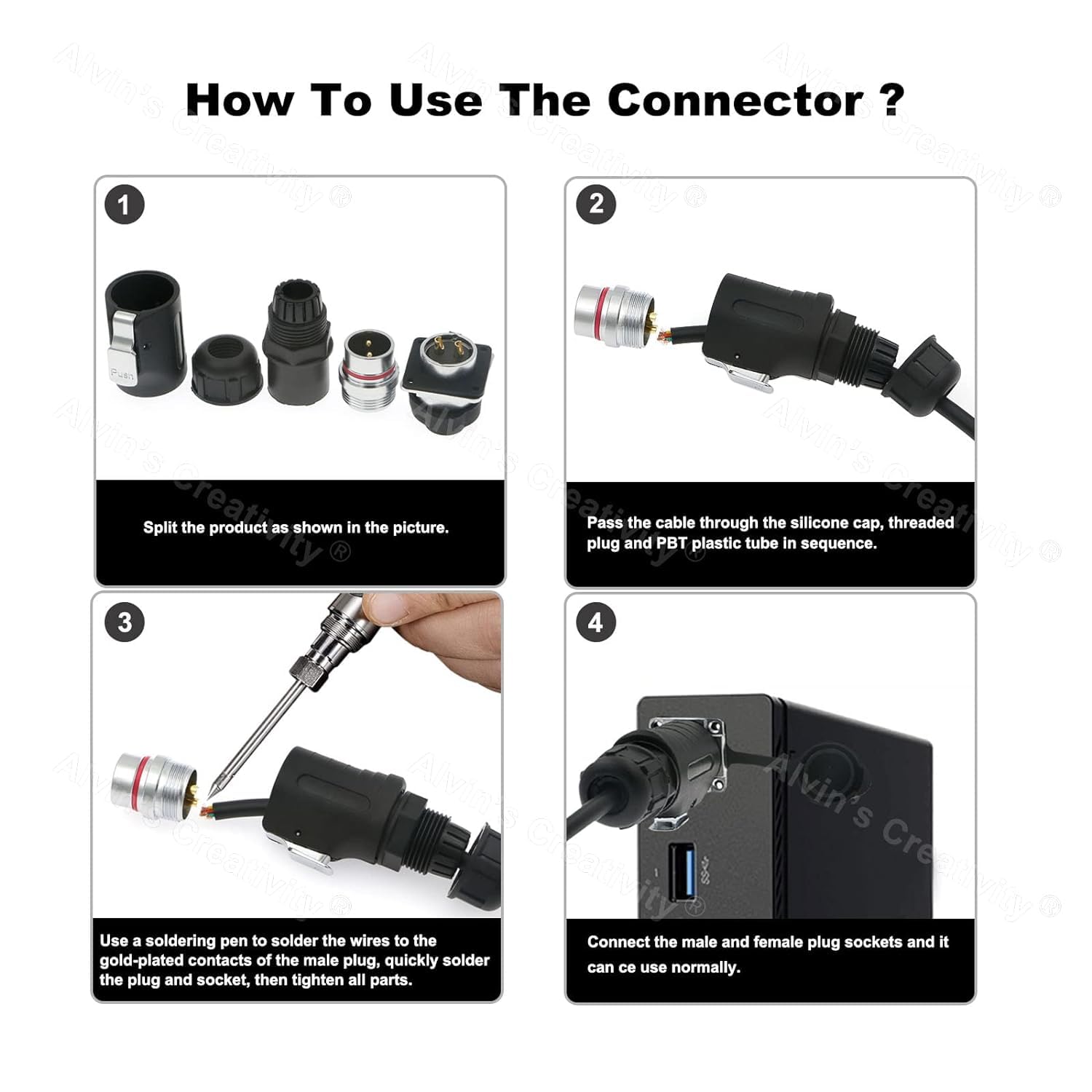

•【Easy to Install 】Cable connection type: Soldering. Step 1: Cable in-line; Step 2: threaded coupling; Step 3 :quickly solder plugs and sockets with solder wire and iron. Note: Prohibited to charged inserted. The wiring welding temperature requirement is -40℃~80℃, operation time: each point does not exceed 3 seconds.

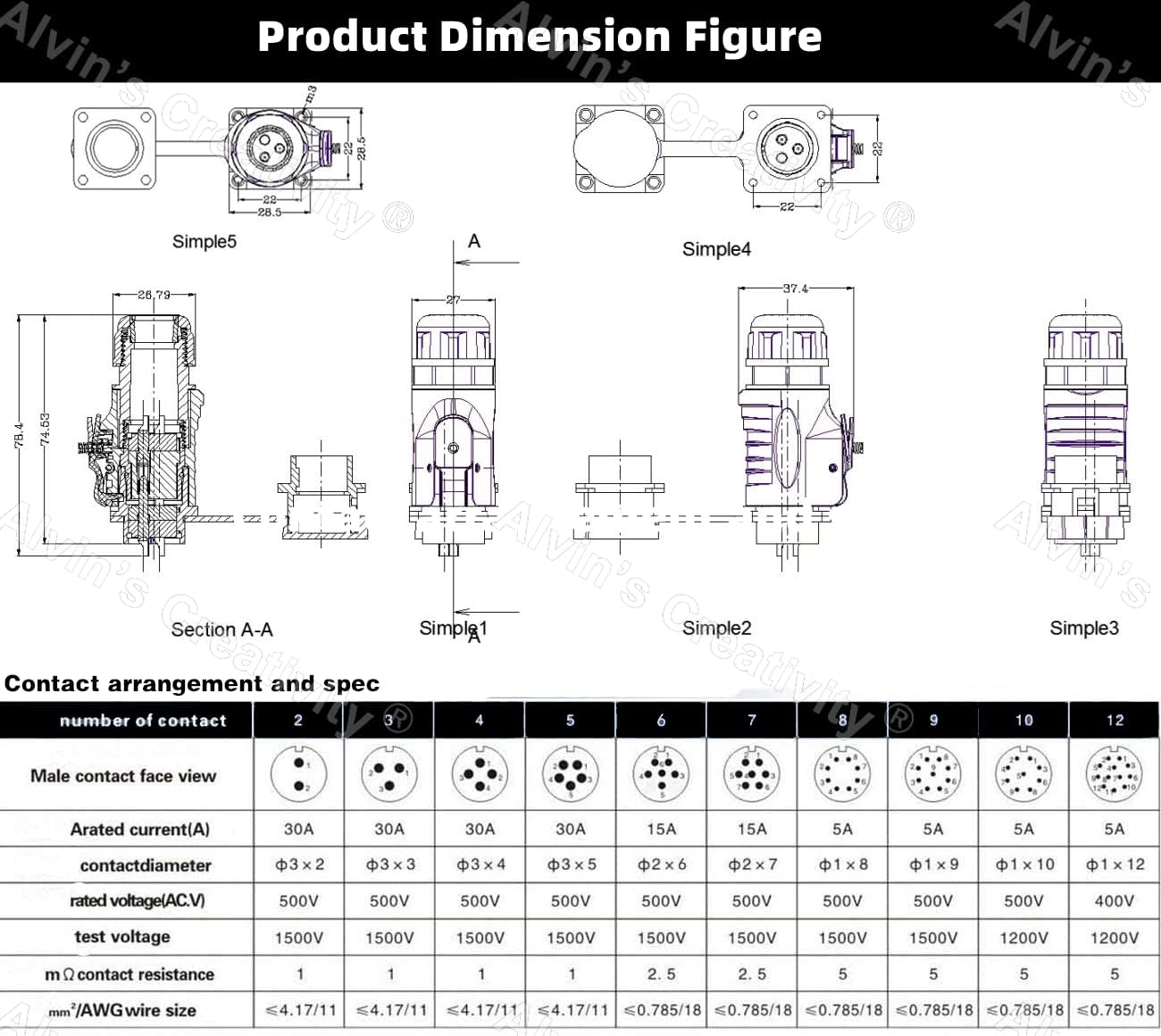

•【Specifications】2 Pin Connector Specifications: The working voltage of the power connector can reach 500VAC, and the rated current is 20A. General wire diameter: Φ8mm～Φ12mm. Cable specification:2.5--4mm²/14-12 AWG. Contact resistance <1mΩ. Durability:≥500 Mating/Unmating Cycle .Withstanding Voltage (AC.V) 1 Minute: 2500V. Contact Diameter × Number: Φ2.7x2 .Package list: 1 male plug + 1 female socket.
