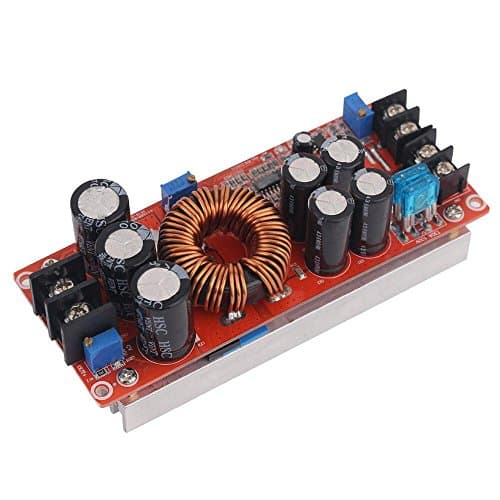

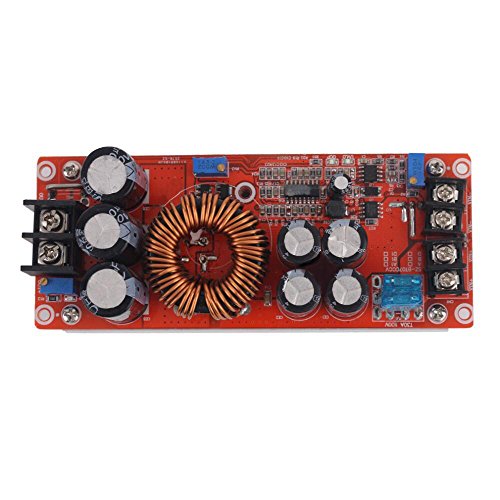

Aideepen 1200W 20A DC Converter Boost Car Step-up Power Supply Module Adjustable Voltage Converter 8-60V to 12-83V
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

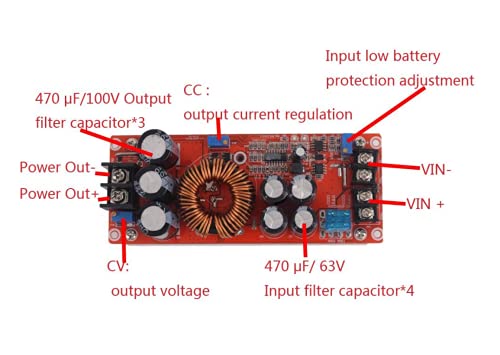

•【DIY projects】It adopts 7 electrolytic capacitors and a 33MM high-power iron-silicon-aluminum magnetic ring to prevent over-temperature magnetic saturation under high current conditions. Use a piece of aluminum radiator on the back to dissipate heat ，Reserve fan mounting holes, suitable for more DIY projects.
•【Adjustable Voltage 】1200W 20A DC converter boost Input voltage range is DC 10-60V, Output voltage range is DC 12-80V.can be arbitrary adjustable; Input current: 0.5-20A (MAX),Max output power is 1200W.(exceeds 15A, please add fan cooling）
•【Output Power】Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W，input 60V * 20A = 1200W Note: Do not use the short-circuit output method to adjust the current. It is recommended to use a smaller adjustment range.
•【Widely Application】can be used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power, DIY adjustable CV CC power, solar power charging, and various batteries charging.
•【Reminder】 Before testing important projects, please conduct simulation testing to truly understand and avoid affecting the effectiveness of your important projects.
