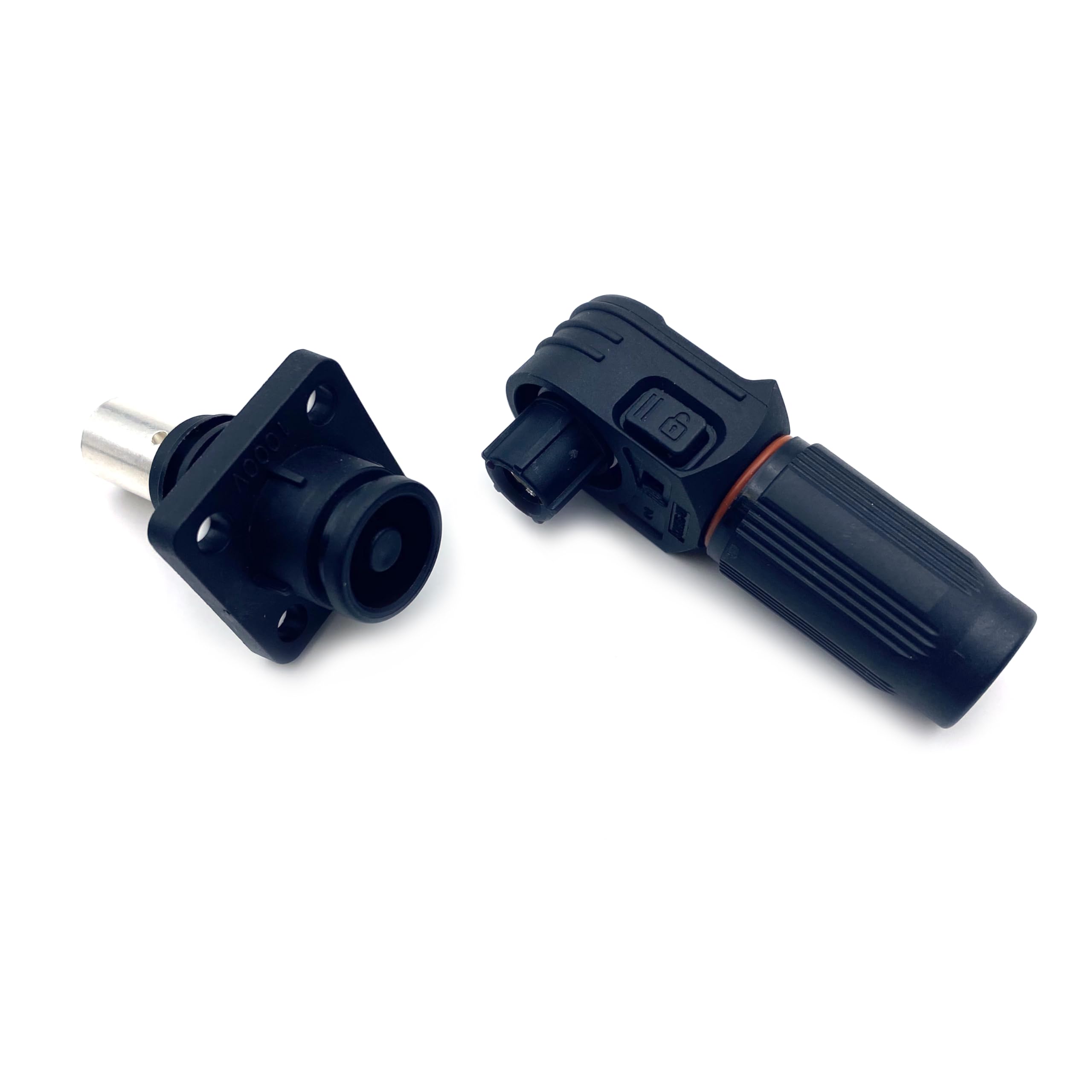

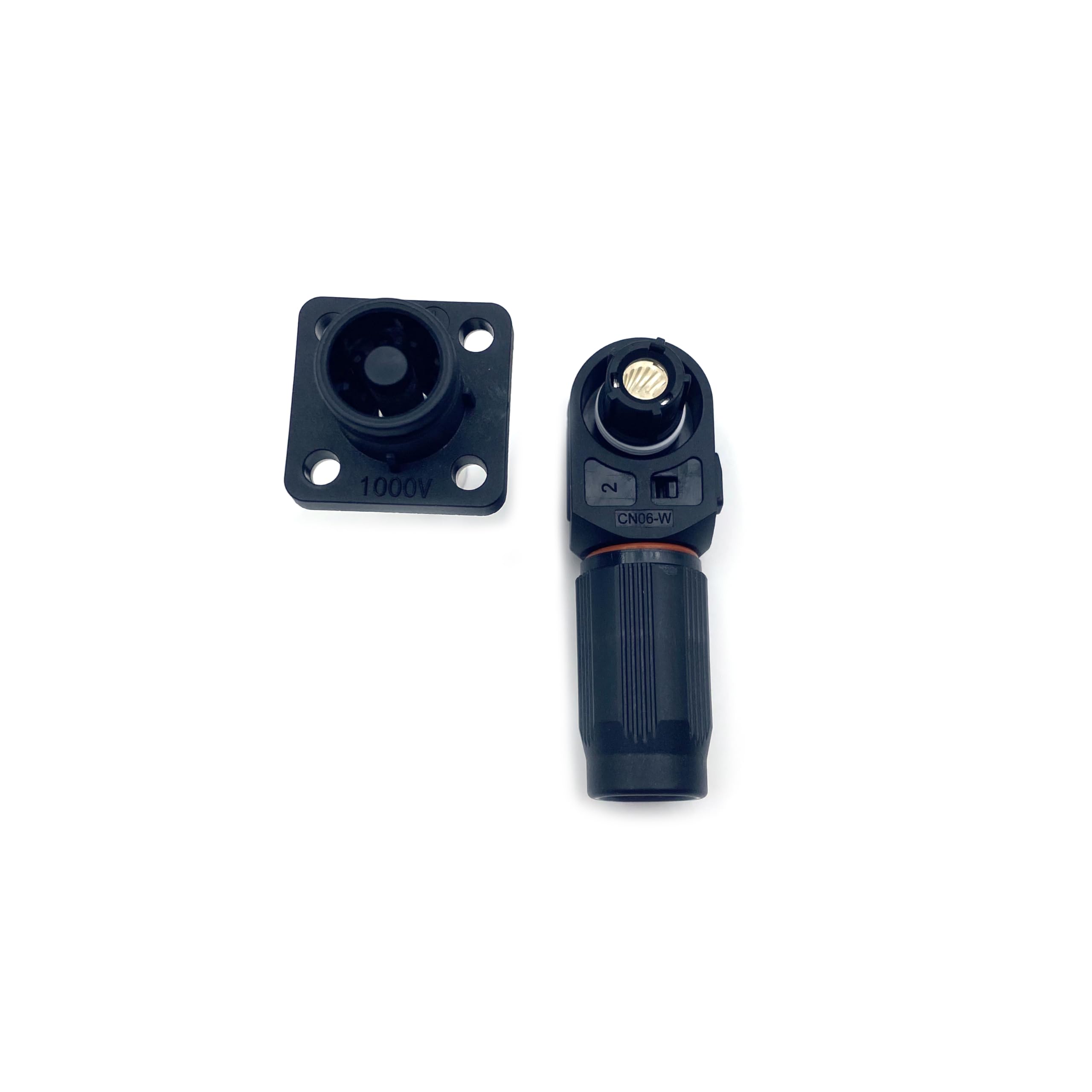

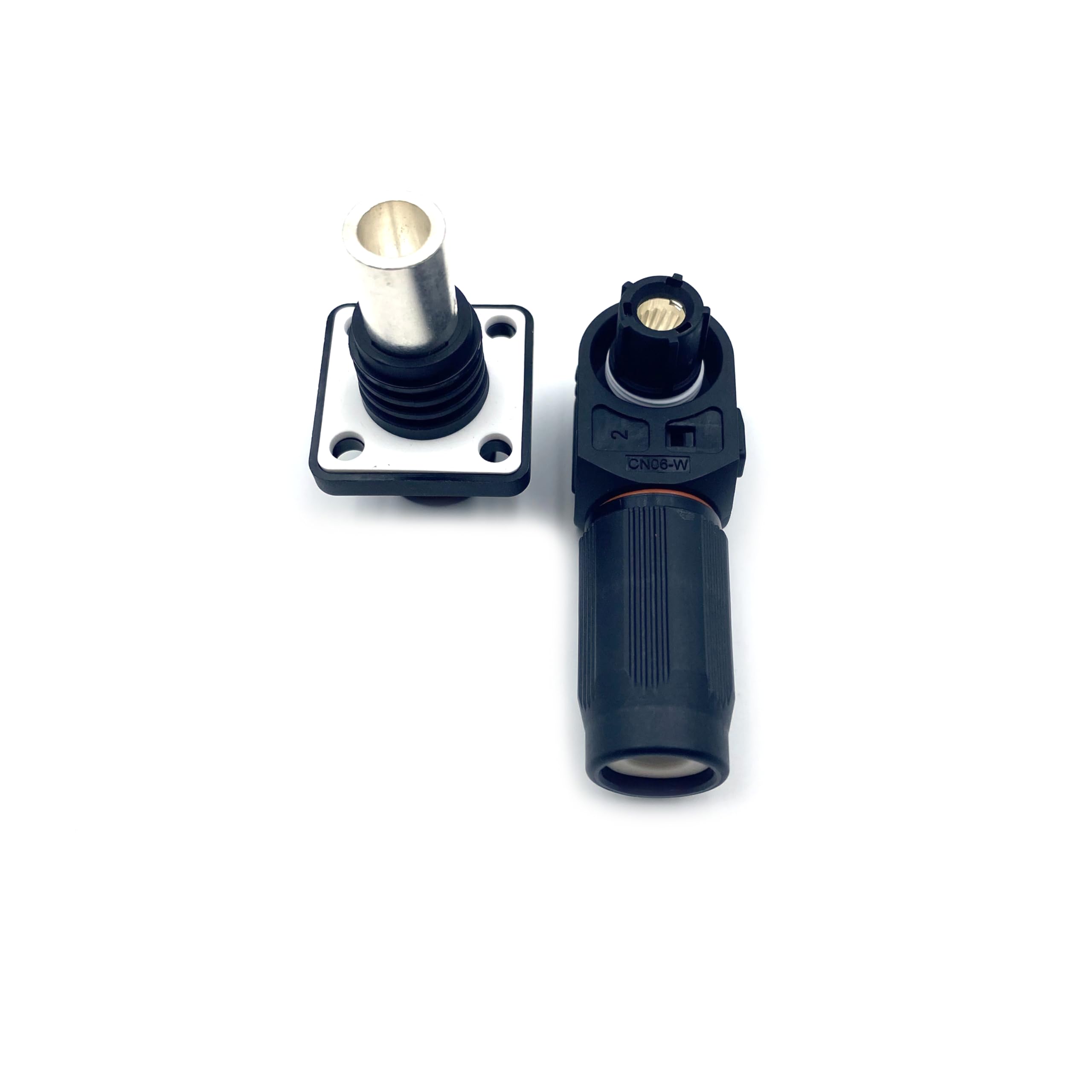

120A Battery Energy Storage Connector, 25mm² High Current Connectors IP67 Waterproof Crimping Wiring Power Adapter Quick Plug Terminal Right Angle Plug and Socket (1000V Black)

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•[High Current Connectors Parameters]: Medium core pin material: T2Y copper silver plated, Shell: PA66 material, insertion and extraction times: 500 times, wiring method: crimping wiring, rated current: 120A, rated voltage: 1000V, Sectional area: 25mm², Protection level: IP67/UL94 V-0
•[Good Structural Design]: High conductivity copper terminals + flame retardant nylon housing, IP67 rating, Quick Lock and Press to Release Design, Ensure high conductivity, high voltage resistance, stable and safe connection even in severely vibrating environments
•[Widely Used]: Energy storage cabinets, industrial energy storage, new energy storage, power storage, commercial energy storage, household energy storage, communication energy storage, EV charging infrastructure, rail transit, industrial automation and heavy equipment applications
•[4 Wiring Methods]: Copper plate wiring method; Copper brand threaded wiring method; Stud wiring method; Crimping wiring method; supporting customization; Installation type: Quick plug interlock
•Package Includes: 1 Set Battery Energy Storage Connector(Plug and Socket)

From USA

NewFupiomeef

120A Battery Energy Storage Connector, 25mm² High Current Connectors IP67 Waterproof Crimping Wiring Power Adapter Quick Plug Terminal Right Angle Plug and Socket (1000V Black)

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•[High Current Connectors Parameters]: Medium core pin material: T2Y copper silver plated, Shell: PA66 material, insertion and extraction times: 500 times, wiring method: crimping wiring, rated current: 120A, rated voltage: 1000V, Sectional area: 25mm², Protection level: IP67/UL94 V-0
•[Good Structural Design]: High conductivity copper terminals + flame retardant nylon housing, IP67 rating, Quick Lock and Press to Release Design, Ensure high conductivity, high voltage resistance, stable and safe connection even in severely vibrating environments
•[Widely Used]: Energy storage cabinets, industrial energy storage, new energy storage, power storage, commercial energy storage, household energy storage, communication energy storage, EV charging infrastructure, rail transit, industrial automation and heavy equipment applications
•[4 Wiring Methods]: Copper plate wiring method; Copper brand threaded wiring method; Stud wiring method; Crimping wiring method; supporting customization; Installation type: Quick plug interlock
•Package Includes: 1 Set Battery Energy Storage Connector(Plug and Socket)
